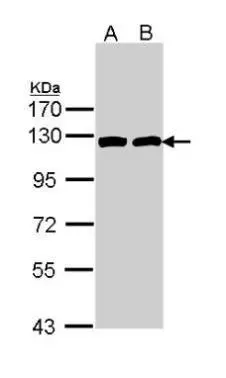

ATP citrate lyase antibody [C2C3], C-term detects ACLY protein by western blot analysis.
A. 30 μg PC-12 whole cell lysate/extract
B. 30 μg Rat2 whole cell lysate/extract
5% SDS-PAGE
ATP citrate lyase antibody [C2C3], C-term (GTX112379) dilution: 1:1000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Sample (50 μg of whole cell lysate)
A: mouse brain
5% SDS PAGE
GTX112379 diluted at 1:2000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

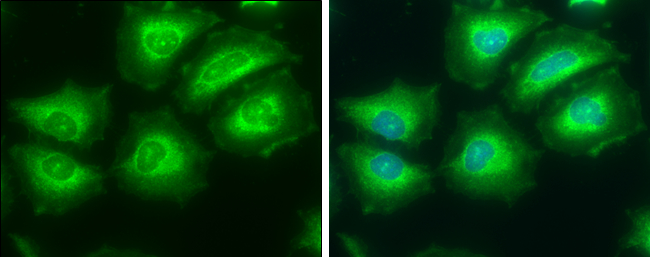

ATP citrate lyase antibody [C2C3], C-term detects ATP citrate lyase protein at cytoplasm by immunofluorescent analysis.
Sample: HeLa cells were fixed in ice-cold MeOH for 5 min.
Green: ATP citrate lyase protein stained by ATP citrate lyase antibody [C2C3], C-term (GTX112379) diluted at 1:200.
Blue: Hoechst 33342 staining.

Sample (30 μg of whole cell lysate)
A: HeLa
B: Raji
7.5% SDS PAGE
GTX112379 diluted at 1:1000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
