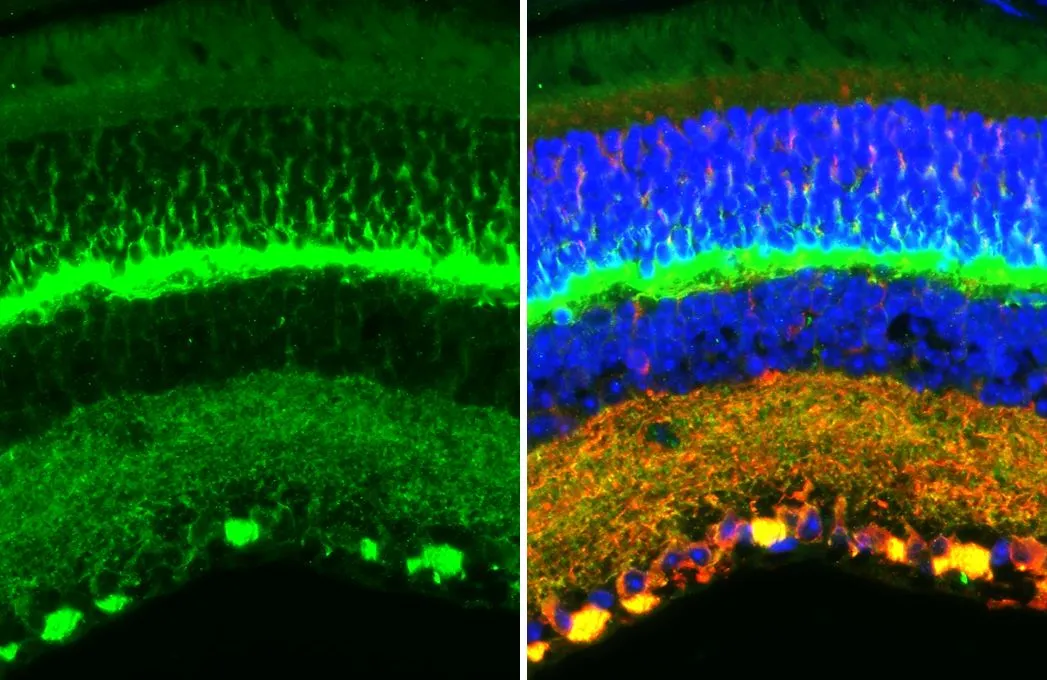

Ankyrin B antibody [GT131] detects Ankyrin B protein by immunohistochemical analysis.
Sample: Paraffin-embedded mouse eye.
Green: Ankyrin B stained by Ankyrin B antibody [GT131] (GTX642448) diluted at 1:200.
Red: beta Tubulin 3/ Tuj1 antibody (GTX130245) diluted at 1:250.
Blue: Fluoroshield with DAPI (GTX30920).
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

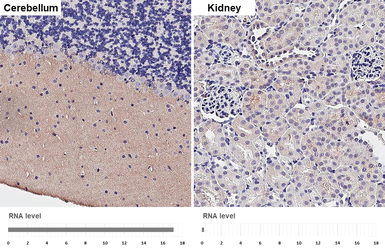

Ankyrin B antibody [GT131] detects Ankyrin B protein by immunohistochemical analysis.
Sample: Paraffin-embedded mouse tissues.
Ankyrin B stained by Ankyrin B antibody [GT131] (GTX642448) diluted at 1:200.
Antigen Retrieval: Tris-EDTA buffer, pH 9.0, 15 min

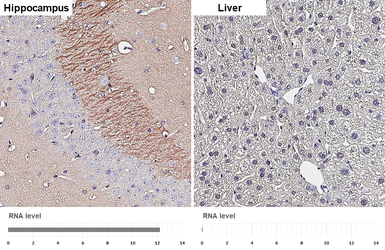

Ankyrin B antibody [GT131] detects Ankyrin B protein by immunohistochemical analysis.
Sample: Paraffin-embedded mouse tissues.
Ankyrin B stained by Ankyrin B antibody [GT131] (GTX642448) diluted at 1:200.
Antigen Retrieval: Tris-EDTA buffer, pH 9.0, 15 min

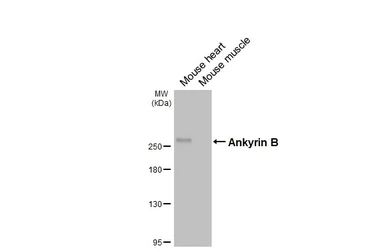

Various tissue extracts (50 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with Ankyrin B antibody [GT131] (GTX642448) diluted at 1:3000. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.

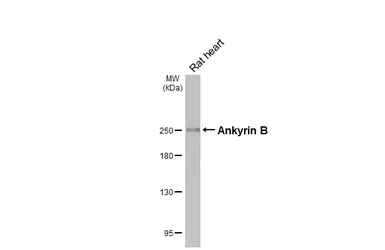

Rat tissue extract (50 μg) was separated by 5% SDS-PAGE, and the membrane was blotted with Ankyrin B antibody [GT131] (GTX642448) diluted at 1:3000. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.

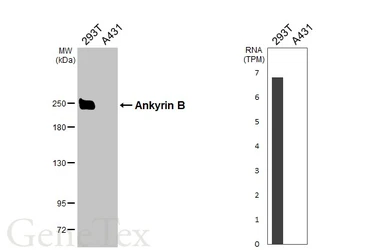

Various whole cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with Ankyrin B antibody [GT131] (GTX642448) diluted at 1:1000. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody. Corresponding RNA expression data are based on Human Protein Atlas program.
