Wild-type (WT) and BCKDK knockout (KO) HeLa cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with BCKDK antibody [N2C3] (GTX104477) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

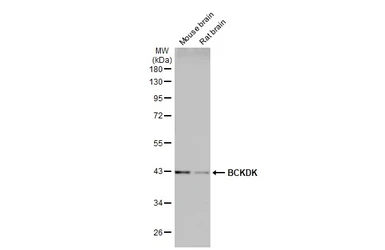

Various tissue extracts (50 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with BCKDK antibody [N2C3] (GTX104477) diluted at 1:10000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.

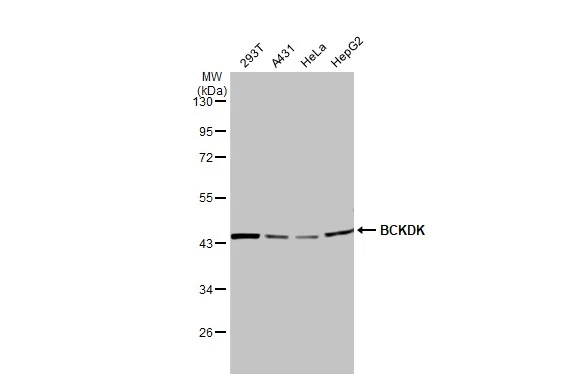

Various whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with BCKDK antibody [N2C3] (GTX104477) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Rat tissue extract (50 μg) was separated by 10% SDS-PAGE, and the membrane was blotted with BCKDK antibody [N2C3] (GTX104477) diluted at 1:10000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Rat tissue extract (50 μg) was separated by 10% SDS-PAGE, and the membrane was blotted with BCKDK antibody [N2C3] (GTX104477) diluted at 1:10000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Immunohistochemical analysis of paraffin-embedded SW480 xenograft, using BCKDK(GTX104477) antibody at 1:100 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

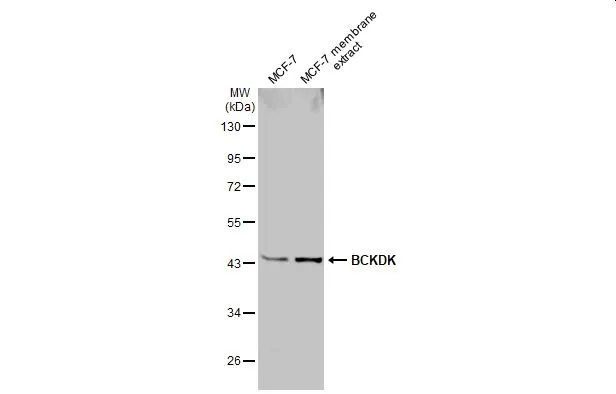

MCF-7 whole cell and membrane extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with BCKDK antibody [N2C3] (GTX104477) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

BCKDK antibody [N2C3] detects BCKDK protein at mitochondria by immunofluorescent analysis.
Sample: HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: BCKDK stained by BCKDK antibody [N2C3] (GTX104477) diluted at 1:500.
Red: alpha Tubulin, a cytoskeleton marker, stained by alpha Tubulin antibody [GT114] (GTX628802) diluted at 1:1000.
Blue: Fluoroshield with DAPI (GTX30920).

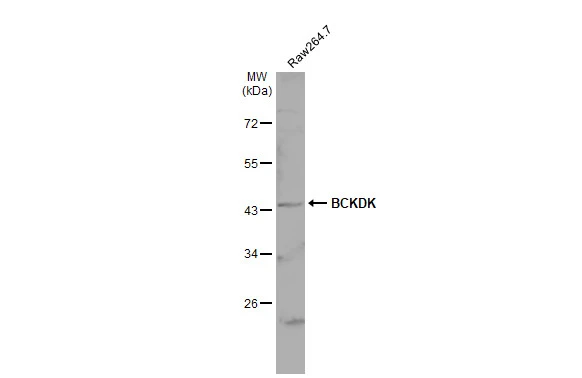

Whole cell extract (30 μg) was separated by 10% SDS-PAGE, and the membrane was blotted with BCKDK antibody [N2C3] (GTX104477) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
