Wild-type (WT) and ECH1 knockout (KO) 293T cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with ECH1 antibody (GTX114374) diluted at 1:2000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Sample (30 ug of whole cell lysate)
A: A549
10% SDS PAGE
ECH1 antibody
GTX114374 diluted at 1:1000

ECH1 antibody detects ECH1 protein at mitochondrion on Cal27 xenograft by immunohistochemical analysis.
Sample: Paraffin-embedded Cal27 xenograft.
ECH1 antibody (GTX114374) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

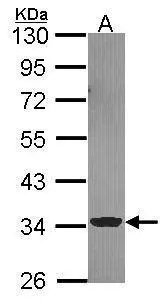

Sample (50 ug of whole cell lysate)
A: Mouse brain
10% SDS PAGE
GTX114374 diluted at 1:1000

Confocal immunofluorescence analysis (Olympus FV10i) of methanol-fixed HeLa, using ECH1(GTX114374) antibody (Green) at 1:500 dilution. Alpha-tubulin filaments were labeled with GTX11304 (Red) at 1:2000.
