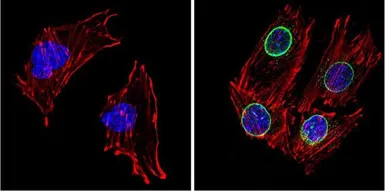

ICC/IF analysis of C2C12 cells using GTX82863 LXR beta antibody. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:200 incubated overnight at 4 ºC

WB analysis of nuclear enriched extracts (30μg lysate) of Hep G2 (Lane 1), PC-3 (Lane 2), 3T3-L1 (Lane 3) and tissue extract of Mouse Lung (Lane 4) using GTX82863 LXR beta antibody.
Dilution : 2 μg/ml

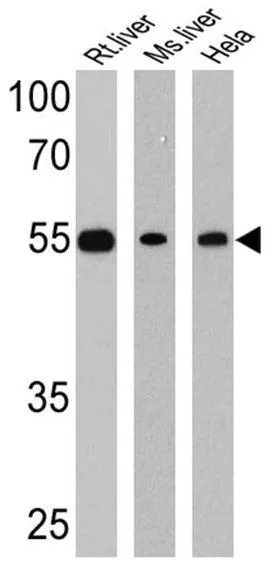

WB analysis of 25 ug of rat liver (Lane 1), mouse liver (Lane 2) and Hela (Lane 3) cell lysates using GTX82863 LXR beta antibody.
Dilution : 1:1000

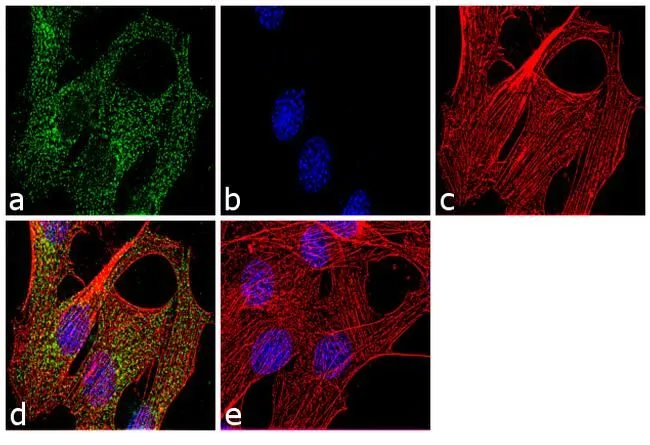

ICC/IF analysis of C2C12 cells using GTX82863 LXR beta antibody. Panel e is a no primary antibody control.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : 4% paraformaldehyde
Permeabilization : 0.1% Triton X-100 for 10 minute
Dilution : 2 μg/ml in 0.1% BSA incubated for 3 hours at room temperature
