Wild-type (WT) and USP15 knockout (KO) HeLa cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with USP15 antibody [C3], C-term (GTX104644) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

USP15 antibody [C3], C-term detects USP15 protein by immunofluorescent analysis.
Sample: HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: USP15 stained by USP15 antibody [C3], C-term (GTX104644) diluted at 1:500.
Blue: Hoechst 33342 staining.

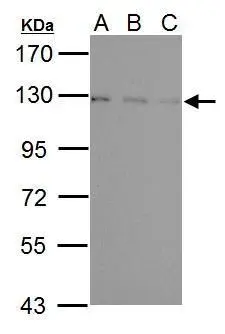

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with USP15 antibody [C3], C-term (GTX104644) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Sample (30 μg of whole cell lysate)
A: NIH-3T3
B: JC
C: BCL-1
7.5% SDS PAGE
GTX104644 diluted at 1:1000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Immunohistochemical analysis of paraffin-embedded N87 xenograft, using USP15(GTX104644) antibody at 1:100 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min
