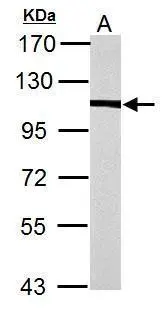

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with alpha Actinin 4 antibody [N2C1], Internal (GTX113115) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Sample (30 μg of whole cell lysate)
A: NIH-3T3
7.5% SDS PAGE
GTX113115 diluted at 1:1000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Immunohistochemical analysis of paraffin-embedded A549 xenograft, using alpha Actinin 4(GTX113115) antibody at 1:500 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

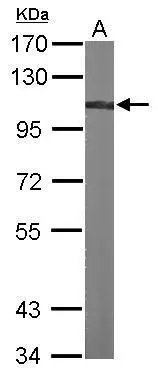

Sample (50 μg of whole cell lysate)
A: Mouse brain
7.5% SDS PAGE
GTX113115 diluted at 1:1000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

alpha Actinin 4 antibody [N2C1], Internal detects alpha Actinin 4 protein by western blot analysis.
A. 30 μg PC-12 whole cell lysate/extract
7.5% SDS-PAGE
alpha Actinin 4 antibody [N2C1], Internal (GTX113115) dilution: 1:3000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Immunofluorescence analysis of paraformaldehyde-fixed HeLa, using alpha Actinin 4(GTX113115) antibody at 1:200 dilution.
