WB analysis of BALB/C 3T3 cell lysate using GTX84906 AKT3 antibody [9B2].
Dilution : 1:500

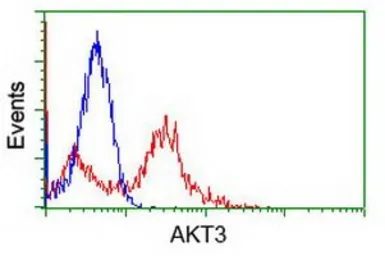

FACS analysis of HEK293T cells transfected with either AKT3 plasmid(Red) or empty vector control plasmid(Blue) using GTX84906 AKT3 antibody [9B2].

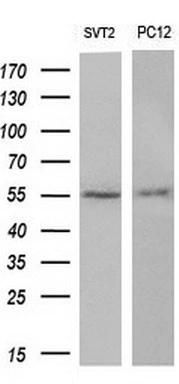

WB analysis of SVT2 and PC12 cell lysate using GTX84906 AKT3 antibody [9B2].
Loading : 10 ug per lane
Dilution : 1:200

ICC/IF analysis of COS7 cells transiently transfected with AKT3 plasmid using GTX84906 AKT3 antibody [9B2].

IHC-P analysis of human lung tissue using GTX84906 AKT3 antibody [9B2].
Antigen retrieval : Heat-induced epitope retrieval by 10mM citrate buffer, pH6.0, 100ºC for 10min.

WB analysis of HEK293T cells transfected with AKT3 plasmid (Right) or empty vector (Left) for 48 hrs using GTX84906 AKT3 antibody [9B2].
Loading : 5 ug per lane
