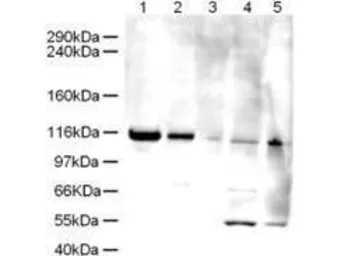

WB analysis of various samples using GTX25429 ATAD5 antibody.
Lane 1 : HeLa nuclear extract
Lane 2 : HeLa whole cell lysate
Lane 3 : A431 whole cell lysate
Lane 4 : Jurkat whole cell lysate
Lane 5 : 293T whole cell lysate
Loading : 5 μg
Dilution : 1:500

Western blot using GeneTex Affinity Purified anti-Elg1 antibody (GTX25429) shows detection of a band ~120 kDa corresponding to human Elg1 in various cell lysates. Lanes contain ~ 5ug of HeLa nuclear extract (1), HeLa (2), A431 (3), Jurkat (4) and HEK293 (5) whole cell lysates. After SDS-PAGE, transfer and blocking, the membrane was probed with the primary antibody diluted to 1:500. The membrane was then washed and reacted with a HRP conjugated Gt-a-Rabbit IgG [H&L] MX followed by ECL detection using a 2 m exposure time. The expected molecular weight of Elg1 is 120kDa according to Kanellis P et al. 2003, although the predicted molecular weight is 207 kDa. The 50kD bands in Jurkat and 293 cell lysates are probably cross-reaction with other proteins. Both the 120 kDa and 50 kDa bands are not observed when antibody is pre-incubated with peptide (data not shown
