WB analysis of recombinant HA-tagged human ATF3 protein using GTX48669 ATF3 antibody.
Dilution : 1:200

WB analysis of recombinant GST-tagged human ATF3 protein using GTX48669 ATF3 antibody.
Dilution : 1:200

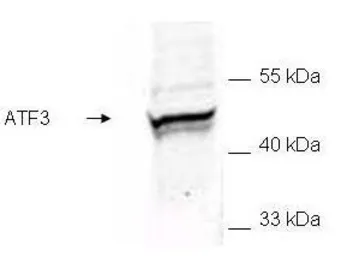

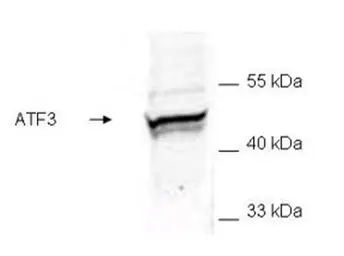

Western blot of E.coli whole cell extract transfected with GST epitope tagged human ATF3. GeneTex's Affinity purified anti-ATF3 detects a band ~48 kDa corresponding to recombinant human ATF3. Immunostaining using GeneTex's anti-GST epitope tag antibody confirms the composition of the recombinant band (not shown). The protein was transferred to nitrocellulose using standard methods. After blocking with 5% goat serum and 0.5% non fat milk in PBS, the membrane was probed with the primary antibody diluted 1:200 in 0.2X blocking buffer in PBS overnight at 4ºC. Reaction was followed by washes and reaction with a 1:5000 dilution of IRDye800 conjugated Gt-a-Rabbit IgG [H&L] for 30 min at room temperature. LICOR's OdysseyR Infrared Imaging System was used to scan and process the image. Other detection systems will yield similar results.

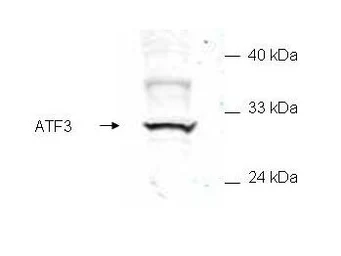

Western blot of mammalian whole cell extract transfected with HA epitope tagged human ATF3. GeneTex's Affinity purified anti-ATF3 detects a band ~31 kDa corresponding to recombinant human ATF3. Immunostaining using GeneTex's anti-HA epitope tag antibody confirms the composition of the recombinant band (not shown). The protein was transferred to nitrocellulose in 30 minutes using standard methods. After blocking with 5% goat serum and 0.5% non-fat milk in PBS, the membrane was probed with the primary antibody diluted 1:200 in 0.2X blocking buffer in PBS overnight at 4ºC. Reaction was followed by washes and reaction with a 1:5000 dilution of IRDye™800 conjugated Gt-a-Rabbit IgG [H&L] for 30 min at room temperature. LICOR's Odyssey® Infrared Imaging System was used to scan and process the image. Other detection systems will yield similar results.
