ATP synthase B1 antibody [N1C3]

Cat. No. GTX114970

Host	Rabbit
Clonality	Polyclonal
Isotype	IgG
Application	WB, ICC/IF, IHC-P
Reactivity	Human
Package	100 μl ($399), 25 μl ($169)

See all ATP synthase B1 products

Datasheet
Document

View product citations for antibody GTX114970 on CiteAb

APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.

Application	Recommended Dilution
WB	1:1000-1:10000
ICC/IF	1:100-1:1000
IHC-P	1:100-1:1000

Not tested in other applications.

Calculated MW

29 kDa. ( Note )

Positive Control

IMR32

Predict Reactivity

Bovine, Rhesus Monkey(>80% identity)

PROPERTIES

Form

Liquid

Buffer

0.1M Tris, 0.1M Glycine, 20% Glycerol

Preservative

0.01% Thimerosal

Storage

Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.

Concentration

0.51 mg/ml (Please refer to the vial label for the specific concentration.)

Antigen Species

Human

Immunogen

Recombinant protein encompassing a sequence within the center region of human ATP synthase B1. The exact sequence is proprietary.

Purification

Purified by antigen-affinity chromatography.

Conjugation

Unconjugated

RRID

AB_10721510

Note

For laboratory research use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.

Purchasers shall not, and agree not to enable third parties to, analyze, copy, reverse engineer or otherwise attempt to determine the structure or sequence of the product.

TARGET

Synonyms

ATP synthase peripheral stalk-membrane subunit b , ATP5F1 , PIG47

Cellular Localization

Mitochondrion , Mitochondrion inner membrane

Background

This gene encodes a subunit of mitochondrial ATP synthase. Mitochondrial ATP synthase catalyzes ATP synthesis, utilizing an electrochemical gradient of protons across the inner membrane during oxidative phosphorylation. ATP synthase is composed of two linked multi-subunit complexes: the soluble catalytic core, F1, and the membrane-spanning component, Fo, comprising the proton channel. The catalytic portion of mitochondrial ATP synthase consists of 5 different subunits (alpha, beta, gamma, delta, and epsilon) assembled with a stoichiometry of 3 alpha, 3 beta, and a single representative of the other 3. The proton channel seems to have nine subunits (a, b, c, d, e, f, g, F6 and 8). This gene encodes the b subunit of the proton channel. [provided by RefSeq]

Database

Gene ID: 515 ATP5PB
UniProt: P24539 ATP5PB

Research Area

DATA IMAGES

GTX114970 IHC-P Image

Immunohistochemical analysis of paraffin-embedded human colon carcinoma, using ATP synthase B1(GTX114970) antibody at 1:250 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

GTX114970 ICC/IF Image

ATP synthase B1 antibody [N1C3] detects ATP synthase B1 protein at mitochondria by immunofluorescent analysis.
Sample: SKNSH cells were fixed in 2% paraformaldehyde/culture medium at 37ºC for 30 min.
Green: ATP synthase B1 protein stained by ATP synthase B1 antibody [N1C3] (GTX114970) diluted at 1:500.
Blue: Hoechst 33342 staining.

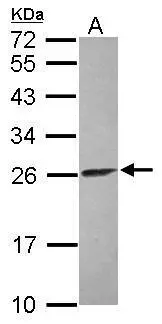

GTX114970 WB Image

Sample (30 ug of whole cell lysate)
A: IMR32
12% SDS PAGE
GTX114970 diluted at 1:5000

REFERENCE

There are currently no references for ATP synthase B1 antibody [N1C3] (GTX114970). Be the first to share your publications with this product.

Submit a Reference

REVIEW

There are currently no reviews for ATP synthase B1 antibody [N1C3] (GTX114970). Be the first to share your experience with this product.

Submit a Review
