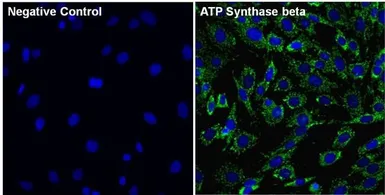

ICC/IF analysis of 3T3 cells using GTX25432 ATP5B antibody [4.3E8.D10]. Cells were probed without (left) or with(right) an antibody.
Green : ATPSynthase beta (ATP5B )
Blue : Nuclei
Red : Actin
Fixation : 4% paraformaldehyde
Dilution : 5 μg/ml for 1 hour at room temperature

ICC/IF analysis of rat neuronal/glial cell culture using GTX25432 ATP5B antibody [4.3E8.D10].

IP analysis of THP-1 cell lysates using GTX25432 ATP5B antibody [4.3E8.D10].
GTX25432 was used as IP and IB antibody
IP reaction : 5μl antibody / 500μg lysate
Dilution : 1:1000

WB analysis of rat neuronal/glial cell extract using GTX25432 ATP5B antibody [4.3E8.D10].

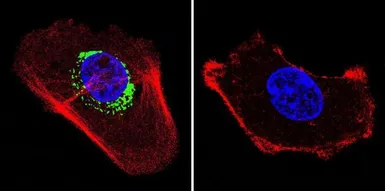

ICC/IF analysis of A431 cells using GTX25432 ATP5B antibody [4.3E8.D10]. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:200 overnight at 4ºC

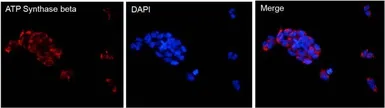

ICC/IF analysis of HEK293T cells using GTX25432 ATP5B antibody [4.3E8.D10].
Red :ATPSynthase beta (ATP5B )
Blue : Nuclei
Fixation : formaldehyde
Permeabilization : 0.3% Triton X-100
Dilution : 1:100 overnight at 4 ºC
