Adenylate kinase 4 antibody [N1C3-2] detects Adenylate kinase 4 protein at mitochondria in mouse prostate by immunohistochemical analysis.
Sample: Paraffin-embedded mouse prostate.
Adenylate kinase 4 antibody [N1C3-2] (GTX107482) diluted at 1:500.

Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

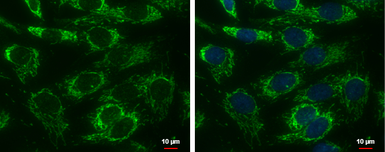

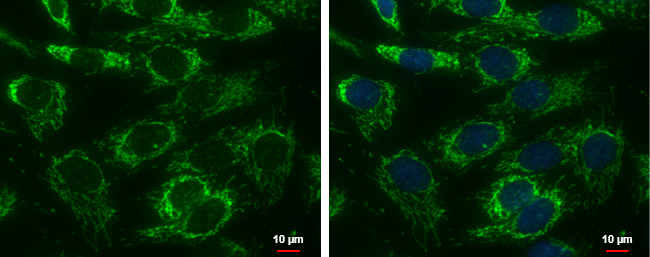

Adenylate kinase 4 antibody [N1C3-2] detects Adenylate kinase 4 protein at mitochondria by immunofluorescent analysis.
Sample: SKNSH cells were fixed in 2% paraformaldehyde/culture medium at 37oC for 30 min.
Green: Adenylate kinase 4 protein stained by Adenylate kinase 4 antibody [N1C3-2] (GTX107482) diluted at 1:500.
Blue: Hoechst 33342 staining.
Scale bar = 10 μm.

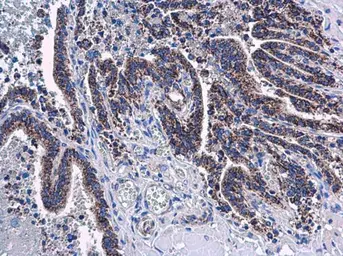

Immunohistochemical analysis of paraffin-embedded RT2 xenograft, using Adenylate kinase 4(GTX107482) antibody at 1:500 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

Sample (30 ug of whole cell lysate)
A: HeLa
B: HepG2
C: HCT116
12% SDS PAGE
GTX107482 diluted at 1:1000

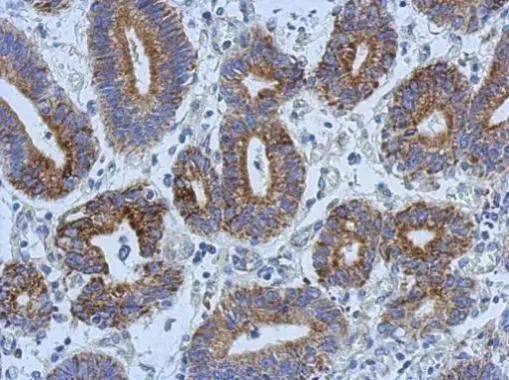

Immunohistochemical analysis of paraffin-embedded human colon carcinoma, using Adenylate kinase 4(GTX107482) antibody at 1:500 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min
