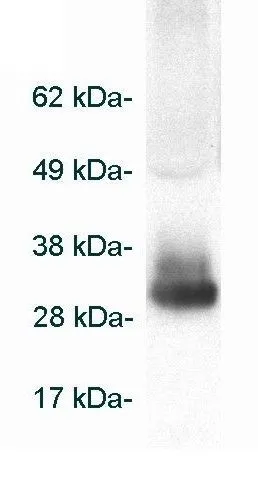

WB analysis of tissue extract (30 ug lysate) of mouse adipose using GTX23455 Adiponectin antibody.
Dilution : 2 μg/ml

WB analysis of mouse serum using GTX23455 Adiponectin antibody.

ICC/IF analysis of 3T3-L1 cells differentiated with Adipogenesis Supplement using GTX23455 Adiponectin antibody. Panel e is untreated cell with no signal. Panel f represents control cells with no primary antibody to assess background.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : 4% paraformaldehyde
Permeabilization : 0.1% Triton X-100 for 10 minute
Dilution : 2 μg/ml in 0.1% BSA and incubated for 3 hours at room temperature

The data was published in the journal Physiol Rep in 2018.PMID: 29446245
