ICC/IF analysis of Arabidopsis thin leaf section using GTX00925 Asparagine synthetase antibody.
Blue: Primary antibod
Red: Autofluorescence

WB analysis of Arabidopsis leaf extract using GTX00925 Asparagine synthetase antibody. Molecular mass of Arabidopsis ASN2 is 65 kDa.
Dilution : 1:1000
Loading : 10 μg

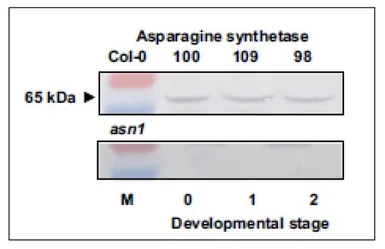

WB analysis of absence of ASN1 protein in extracts of floral organ of asn1 insertion mutant using GTX00925 Asparagine synthetase antibody. Wild type (Col-0) samples are analyzed in the upper window, and asn1 mutant samples are in the lower window. The upper numerals are the protein levels measured by densitometric tracing of western blot. Developmental stages are indicated below. Marker proteins are 72 and 55 kDa.

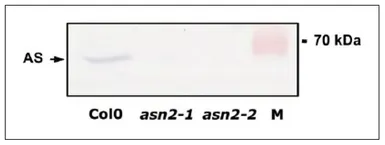

WB analysis of various arabidopsis leaf extract using GTX00925 Asparagine synthetase antibody.
Lane 1 : Col0 is wild-type Arabidopsis plant
Lane 2 & 3 : asn2-1 and asn2-2 are T1 insertion mutants, respectively.
