B-Raf antibody [N2C1], Internal

Overexpression

Cat No. GTX100913

Host Rabbit
Clonality Polyclonal
Isotype IgG
Application WB, IHC-P, IP
Reactivity Human, Mouse, Rat
APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.
Application Dilution
WB 1:500-1:10000
IHC-P 1:100-1:1000
IP 1:100-1:500
Not tested in other applications.

Calculated MW

84 kDa. ( Note )

Positive Control

A549 , H1299 , HCT116 , PC-12
PROPERTIES

Form

Liquid

Buffer

1XPBS, 20% Glycerol (pH7). 0.01% Thimerosal was added as a preservative.

Storage

Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.

Concentration

1 mg/ml (Please refer to the vial label for the specific concentration.)

Antigen Species

Human

Immunogen

Recombinant protein encompassing a sequence within the center region of human B-Raf. The exact sequence is proprietary.

Purification

Purified by antigen-affinity chromatography.

Conjugation

Unconjugated

Note

For laboratory use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.
TARGET

Synonyms

B-Raf Proto-Oncogene, Serine/Threonine Kinase,B-Raf1,B-Raf,Braf1,Ns7,Rafb1,Braf

Cellular Localization

Cytoplasm

Background

This gene encodes a protein belonging to the raf/mil family of serine/threonine protein kinases. This protein plays a role in regulating the MAP kinase/ERKs signaling pathway, which affects cell division, differentiation, and secretion. Mutations in this gene are associated with cardiofaciocutaneous syndrome, a disease characterized by heart defects, mental retardation and a distinctive facial appearance. Mutations in this gene have also been associated with various cancers, including non-Hodgkin lymphoma, colorectal cancer, malignant melanoma, thyroid carcinoma, non-small cell lung carcinoma, and adenocarcinoma of lung. A pseudogene, which is located on chromosome X, has been identified for this gene. [provided by RefSeq]

Database

Research Area

DATA IMAGES

GTX100913 WB Image

B-Raf antibody [N2C1], Internal detects B-Raf protein by western blot analysis.
A. 30 μg PC-12 whole cell extract
7.5 % SDS-PAGE
B-Raf antibody [N2C1], Internal (GTX100913) dilution: 1:5000


GTX100913 WB Image

Overexpression

B-Raf antibody [N2C1], Internal detects B-Raf protein by western blot analysis. Non-transfected (-) and B-Raf-transfected (+) 293T whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with B-Raf antibody [N2C1], Internal (GTX100913) diluted at 1:5000.

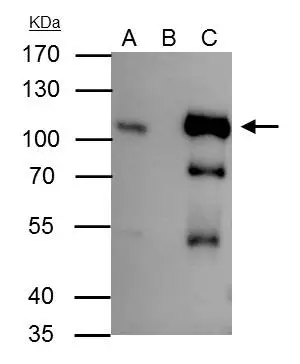

GTX100913 IP Image

B-Raf antibody [N2C1], Internal immunoprecipitates B-Raf protein in IP experiments. IP Sample: HepG2 whole cell lysate/extract A : 30 μg whole cell lysate/extract of B-Raf protein expressing HepG2 cells B : Control with 3 μg of pre-immune rabbit IgG C : Immunoprecipitation of B-Raf by 3 μg of B-Raf antibody [N2C1], Internal (GTX100913) 10% SDS-PAGE The immunoprecipitated B-Raf protein was detected by B-Raf antibody [N2C1], Internal (GTX100913) diluted at 1 : 1000. EasyBlot anti-rabbit IgG (HRP) (GTX221666-01) was used as a secondary reagent.


GTX100913 IHC-P Image

B-Raf antibody [N2C1], Internal detects B-Raf protein at cytosol on mouse testis by immunohistochemical analysis.
Sample: Paraffin-embedded mouse testis.
B-Raf antibody [N2C1], Internal (GTX100913) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min


GTX100913 WB Image

B Raf antibody detects B Raf protein by western blot analysis. Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with B Raf antibody (GTX100913) diluted by 1:1000.
