CD109 antibody [3B5G6]

Cat. No. GTX04727

Host	Mouse
Clonality	Monoclonal
Clone Name	3B5G6
Isotype	IgG1
Application	WB, ICC/IF, IHC-P, FACS, ELISA
Reactivity	Human
Package	100 μl ($429)

See all CD109 products

Datasheet

View product citations for antibody GTX04727 on CiteAb

APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.

Application	Recommended Dilution
WB	1:500-1:2000
ICC/IF	1:20-1:100
IHC-P	1:200-1:1000
FACS	1:200-1:400
ELISA	1:10000

Not tested in other applications.

Calculated MW

162 kDa. ( Note )

PROPERTIES

Form

Liquid

Buffer

PBS

Preservative

0.05% sodium azide

Storage

Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.

Concentration

1 mg/ml (Please refer to the vial label for the specific concentration.)

Antigen Species

Human

Immunogen

Purified recombinant fragment of human CD109 (AA: extra 1274-1421) expressed in E. coli.

Purity

Purified IgG1.

Conjugation

Unconjugated

Note

For laboratory research use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.

Purchasers shall not, and agree not to enable third parties to, analyze, copy, reverse engineer or otherwise attempt to determine the structure or sequence of the product.

TARGET

Synonyms

CD109,CD109 molecule,CPAMD7,p180,r150

Cellular Localization

Cell membrane

Background

This gene encodes a glycosyl phosphatidylinositol (GPI)-linked glycoprotein that localizes to the surface of platelets, activated T-cells, and endothelial cells. The protein binds to and negatively regulates signalling by transforming growth factor beta (TGF-beta). Multiple transcript variants encoding different isoforms have been found for this gene. [provided by RefSeq, Apr 2014]

Database

Gene ID: 135228 CD109
UniProt: Q6YHK3 CD109

Research Area

DATA IMAGES

GTX04727 ICC/IF Image

ICC/IF analysis of HeLa cells using GTX04727 CD109 antibody [3B5G6].
Green : Primary antibody
Red : Actin
Blue : Fluorescent DNA dye

GTX04727 IHC-P Image

IHC-P analysis of human stomach tissue using GTX04727 CD109 antibody [3B5G6].

GTX04727 FACS Image

FACS analysis of Jurkat cells using GTX04727 CD109 antibody [3B5G6].
Green : Primary antibody
Red : Negative control

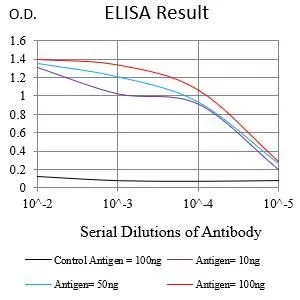

GTX04727 ELISA Image

ELISA analysis of antigen using serially diluted GTX04727 CD109 antibody [3B5G6].
Black : Control antigen 100 ng
Purple : Antigen 10 ng
Blue : Antigen 50 ng
Red : Antigen 100 ng

GTX04727 WB Image

WB analysis of HEK293 cells with/without CD109 (aa 1274-1421)-hIgGFc transfection using GTX04727 CD109 antibody [3B5G6].

GTX04727 IHC-P Image

IHC-P analysis of human lung tissue using GTX04727 CD109 antibody [3B5G6].

GTX04727 WB Image

WB analysis of human CD109 (aa 1274-1421) recombinant protein using GTX04727 CD109 antibody [3B5G6].

REFERENCE

There are currently no references for CD109 antibody [3B5G6] (GTX04727). Be the first to share your publications with this product.

Submit a Reference

REVIEW

There are currently no reviews for CD109 antibody [3B5G6] (GTX04727). Be the first to share your experience with this product.

Submit a Review
