CYFIP1 antibody [N1N2], N-term

CYFIP1 antibody [N1N2], N-term detects CYFIP1 protein by immunofluorescent analysis.
Sample: DIV9 rat E18 primary cortical neuron cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: CYFIP1 stained by CYFIP1 antibody [N1N2], N-term (GTX122467) diluted at 1:500.
Red: beta Tubulin 3/ Tuj1, stained by beta Tubulin 3/ Tuj1 antibody [GT1338] (GTX631831) diluted at 1:500.
Blue: Fluoroshield with DAPI (GTX30920).

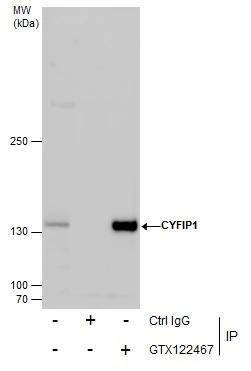

Immunoprecipitation of CYFIP1 protein from HeLa whole cell extracts using 5 μg of CYFIP1 antibody [N1N2], N-term (GTX122467).
Western blot analysis was performed using CYFIP1 antibody [N1N2], N-term (GTX122467).
EasyBlot anti-Rabbit IgG (GTX221666-01) was used as a secondary reagent.

Various tissue extracts (50 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with CYFIP1 antibody [N1N2], N-term (GTX122467) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Sample (30 μg of whole cell lysate)
A: HeLa
5% SDS PAGE
GTX122467 diluted at 1:1000
The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Immunohistochemical analysis of paraffin-embedded human hepatoma, using CYFIP1(GTX122467) antibody at 1:500 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min
