APPLICATION
Application Note
*Optimal dilutions/concentrations should be determined by the researcher.
Application |
Recommended Dilution |
1:5000-1:20000 |
1:100-1:1000 |
1:100-1:1000 |
1:500-1:1000 |
Not tested in other applications.
Calculated MW
Positive Control
Neuro2A , GL261 , C8D30 , NIH-3T3 , BCL-1 , Raw264.7 , C2C12 , PC-12 , Rat2 , 293T
Product Note
IP/MS validation was supported by references (PMID:30377396)
Predict Reactivity
Bovine, Dog, Pig(>80% identity)
PROPERTIES
Form
Liquid
Buffer
1XPBS pH7, 1% BSA, 20% Glycerol
Preservative
0.025% ProClin 300
Storage
Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.
Concentration
0.46 mg/ml (Please refer to the vial label for the specific concentration.)
Antigen Species
Human
Immunogen
Carrier-protein conjugated synthetic peptide encompassing a sequence within the C-terminus region of human Calnexin. The exact sequence is proprietary.
Purification
Purified by antigen-affinity chromatography.
Conjugation
Unconjugated
RRID
AB_1949824
Note
For laboratory use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.
TARGET
Synonyms
calnexin , CNX , IP90 , P90
Cellular Localization
Endoplasmic reticulum membrane , Melanosome
Background
This gene encodes a member of the calnexin family of molecular chaperones. The encoded protein is a calcium-binding, endoplasmic reticulum (ER)-associated protein that interacts transiently with newly synthesized N-linked glycoproteins, facilitating protein folding and assembly. It may also play a central role in the quality control of protein folding by retaining incorrectly folded protein subunits within the ER for degradation. Alternatively spliced transcript variants encoding the same protein have been described. [provided by RefSeq]
Database
Research Area
DATA IMAGES
|
GTX109669 WB Image
Non-transfected (–) and transfected (+) 293T whole cell extracts (15 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with Calnexin antibody [C3], C-term (GTX109669) diluted at 1:20000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
|
|
GTX109669 IP Image
Calnexin antibody immunoprecipitates Calnexin protein in IP experiments. IP Sample: 1000 μg HeLa whole cell lysate/extract A. 30 μg HeLa whole cell lysate/extract B. Control with 2 μg of preimmune rabbit IgG C. Immunoprecipitation of Calnexin protein by 2 μg of Calnexin antibody (GTX109669) 7.5% SDS-PAGE The immunoprecipitated Calnexin protein was detected by Calnexin antibody (GTX109669) diluted at 1:1000. EasyBlot anti-rabbit IgG (GTX221666-01) was used as a secondary reagent.
|
|
GTX109669 WB Image

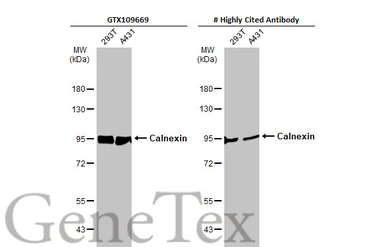

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membranes were blotted with Calnexin antibody [C3], C-term (GTX109669) diluted at 1:5000 and competitor's antibody diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
*The competitor is not affiliated with GeneTex and does not endorse this product.
|
|
GTX109669 WB Image

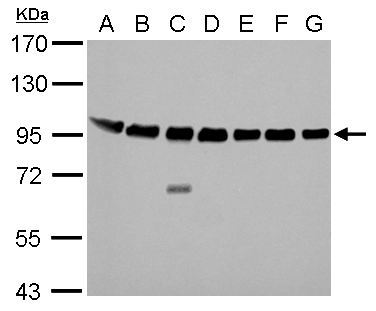

Calnexin antibody [C3], C-term detects Calnexin protein by Western blot analysis. A. 30 μg Neuro2A whole cell lysate/extract B. 30 μg GL261 whole cell lysate/extract C. 30 μg C8D30 whole cell lysate/extract D. 30 μg NIH-3T3 whole cell lysate/extract E. 30 μg BCL-1 whole cell lysate/extract F. 30 μg Raw264.7 whole cell lysate/extract G. 30 μg C2C12 whole cell lysate/extract 7.5 % SDS-PAGE Calnexin antibody [C3], C-term (GTX109669) dilution: 1:10000
|
|
GTX109669 IHC-P Image
Calnexin antibody [C3], C-term detects Calnexin protein at cytosol on mouse middle brain by immunohistochemical analysis. Sample: Paraffin-embedded mouse middle brain. Calnexin antibody [C3], C-term (GTX109669) dilution: 1:500.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min
|
|
GTX109669 IHC-P Image
Immunohistochemical analysis of paraffin-embedded DLD-1 xenograft, using Calnexin(GTX109669) antibody at 1:500 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min
|
|
GTX109669 WB Image
Various tissue extracts (50 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with Calnexin antibody [C3], C-term (GTX109669) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
|
|
GTX109669 WB Image

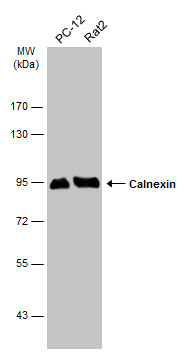

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with Calnexin antibody [C3], C-term (GTX109669) diluted at 1:10000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
|
|
GTX109669 ICC/IF Image
Calnexin antibody [C3], C-term detects Calnexin protein at endoplasmic reticulum by immunofluorescent analysis.Sample: HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min.Green: Calnexin stained by Calnexin antibody [C3], C-term (GTX109669) diluted at 1:500.Red: alpha Tubulin, a cytoskeleton marker, stained by alpha Tubulin antibody [GT114] (GTX628802) diluted at 1:1000.Blue: Fluoroshield with DAPI (GTX30920).
|
|
GTX109669 IHC-P Image
Calnexin antibody [C3], C-term detects Calnexin protein at cytosol on mouse testis by immunohistochemical analysis. Sample: Paraffin-embedded mouse testis. Calnexin antibody [C3], C-term (GTX109669) dilution: 1:500.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min
|
|
GTX109669 WB Image

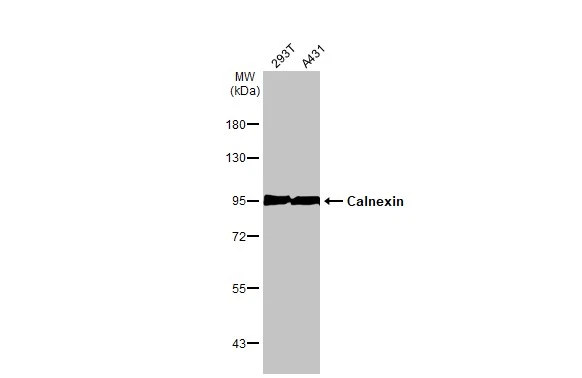

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with Calnexin antibody [C3], C-term (GTX109669) diluted at 1:10000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
|
|
GTX109669 WB Image

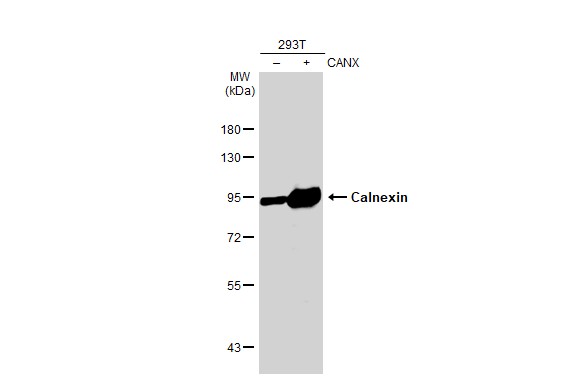

Non-transfected (–) and transfected (+) 293T whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with Calnexin antibody [C3], C-term (GTX109669) diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
|
|
GTX109669 ICC/IF Image
Calnexin antibody [C3], C-term detects Calnexin protein by immunofluorescent analysis.Sample: DIV9 rat E18 primary cortical neuron cells were fixed in 4% paraformaldehyde at RT for 15 min.Green: Calnexin stained by Calnexin antibody [C3], C-term (GTX109669) diluted at 1:500.Red: beta Tubulin 3/ Tuj1, stained by beta Tubulin 3/ Tuj1 antibody [GT1338] (GTX631831) diluted at 1:500.Blue: Fluoroshield with DAPI (GTX30920).
|
|
GTX109669 IHC-P Image
Calnexin antibody [C3], C-term detects Calnexin protein at cell membrane and cytoplasm by immunohistochemical analysis.Sample: Paraffin-embedded rat brain.Calnexin stained by Calnexin antibody [C3], C-term (GTX109669) diluted at 1:165.Antigen Retrieval: Citrate buffer, pH 6.0, 15 min
|
|
GTX109669 IHC-P Image
Calnexin antibody [C3], C-term detects Calnexin protein at cell membrane and cytoplasm by immunohistochemical analysis.Sample: Paraffin-embedded mouse stomach.Calnexin stained by Calnexin antibody [C3], C-term (GTX109669) diluted at 1:165.Antigen Retrieval: Citrate buffer, pH 6.0, 15 min
|
|
GTX109669 IHC-P Image
Calnexin antibody [C3], C-term detects Calnexin protein at endoplasmic reticulum by immunohistochemical analysis.Sample: Paraffin-embedded rat duodenum.Calnexin stained by Calnexin antibody [C3], C-term (GTX109669) diluted at 1:500.Antigen Retrieval: Citrate buffer, pH 6.0, 15 min
|
|
GTX109669 IHC-P Image
Calnexin antibody [C3], C-term detects Calnexin protein at endoplasmic reticulum by immunohistochemical analysis.Sample: Paraffin-embedded mouse duodenum.Calnexin stained by Calnexin antibody [C3], C-term (GTX109669) diluted at 1:500.Antigen Retrieval: Citrate buffer, pH 6.0, 15 min
|
REFERENCE
REVIEW
Calnexin antibody [C3], C-term
Cat. No. GTX109669
Rating
|
|
( Average 5 based on 6 users reviews)
|
Application
Western Blot(WB)
|
|
( Average 5 based on 5 users reviews)
|
Immunocytochemistry/ Immunofluorescence(ICC/IF)
|
|
( Average 5 based on 1 users reviews)
|
Date :
Anonymous submitted on 10-Aug-2021
Application Tested :
WB
Sample Species :
Hu
Figure Note :

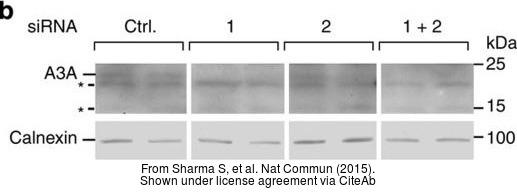

The data was peer reviewed and published in the journal Nat Commun in 2015.
PMID: 25898173
Date :
Anonymous submitted on 10-Aug-2021
Application Tested :
WB
Sample Species :
Hu
Figure Note :

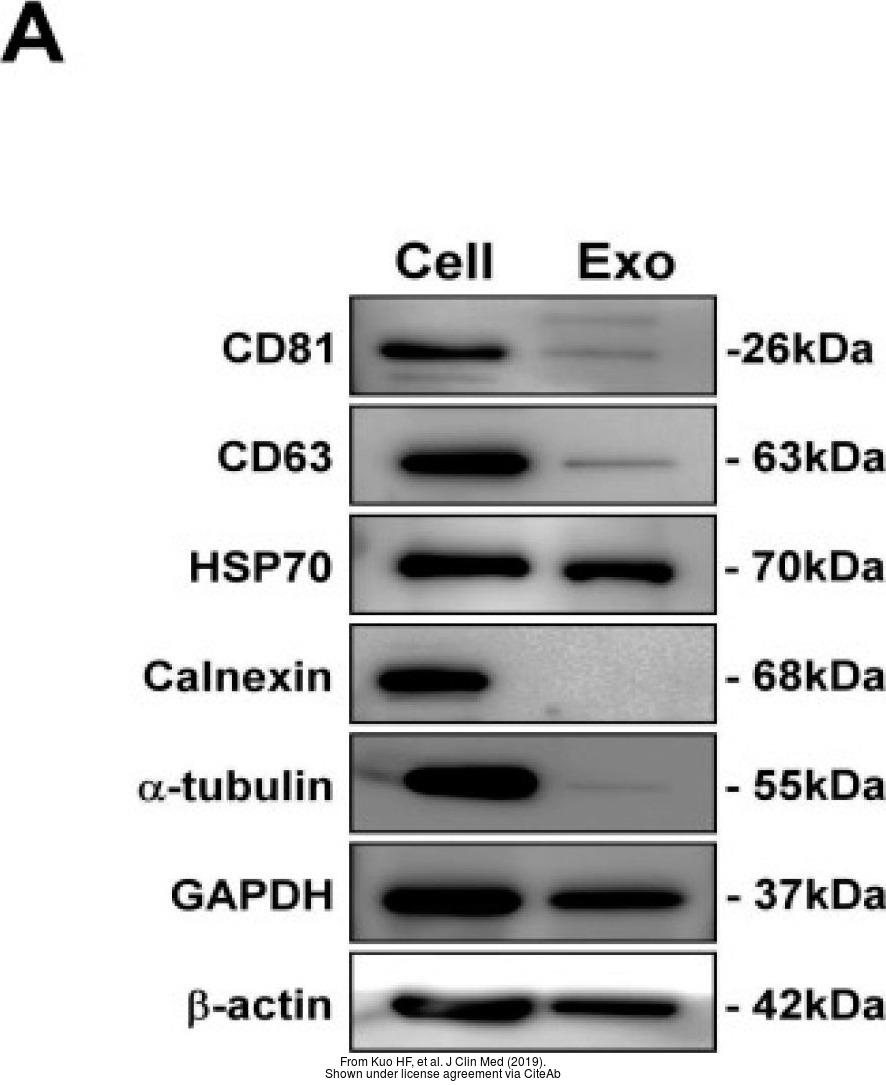

The data was peer reviewed and published in the journal J Clin Med in 2019.
PMID: 31167519
Date :
Anonymous submitted on 05-May-2021
Application Tested :
WB
Sample Species :
Hu
Sample :
A549 cells
Amount used :
10 μg
Blocking :
5% skim milk in TBST, 27°C, 1Hr
Primary Antibody :
1:5000, 4°C, 12Hr
Secondary Antibody :
GTX213110-01, 1:5000, 27°C, 2Hr
Lane Description :

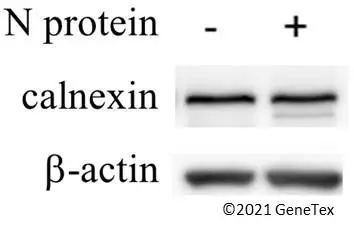

Two groups (Dengue Nucleocapsid protein -/+) of whole cell extracts (10 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with calnexin antibody (GTX109669) diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
Date :
Anonymous submitted on 18-Mar-2021
Application Tested :
WB
Sample Species :
Ms
Figure Note :
The data was peer reviewed and published in the journal Skelet Muscle in 2014.
PMID: 25530838
Date :
Anonymous submitted on 18-Mar-2021
Application Tested :
ICC/IF
Sample Species :
Ms
Figure Note :

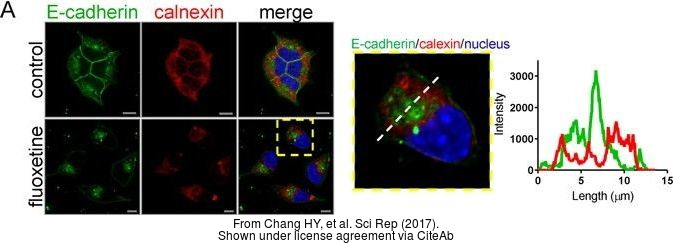

The data was peer reviewed and published in the journal Sci Rep in 2017.
PMID: 28615694
Date :
Anonymous submitted on 30-Apr-2014
Application Tested :
WB
Sample Species :
Hu
Sample :
HEK293 cells, KN73 cells
Amount used :
15μg
Blocking :
Superblock blocking buffer in TBS, 24°C, 1Hr
Primary Antibody :
1:5000, 4°C, 16Hr

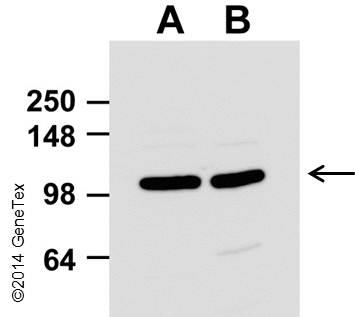

Lane Description :
Lane A: HEK293 cells, Lane B: KN73 cells
