Wild-type (WT) and DDR2 (KO) HeLa cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with DDR2 antibody [C2C3], C-term (GTX102651) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Immunohistochemical analysis of paraffin-embedded human breast cancer, using DDR2(GTX102651) antibody at 1:250 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

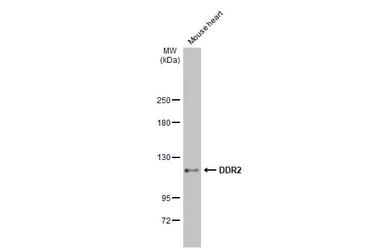

Mouse tissue extract (50 μg) was separated by 5% SDS-PAGE, and the membrane was blotted with DDR2 antibody [C2C3], C-term (GTX102651) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

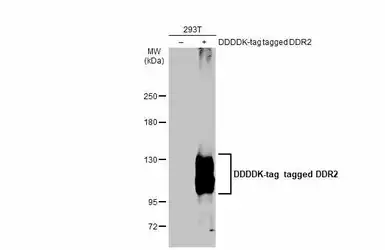

Non-transfected (–) and transfected (+) 293T whole cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with DDR2 antibody [C2C3], C-term (GTX102651) diluted at 1:3000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

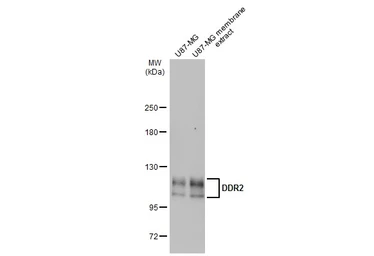

U87-MG whole cell and membrane extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with DDR2 antibody [C2C3], C-term (GTX102651) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

DDR2 antibody [C2C3], C-term detects DDR2 protein at cell membrane by immunofluorescent analysis.
Sample: DIV9 rat E18 primary cortical neuron and glia cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: DDR2 stained by DDR2 antibody [C2C3], C-term (GTX102651) diluted at 1:250.
Red: Tau, an Axon marker, stained by Tau antibody [GT287] (GTX634809) diluted at 1:500.
Blue: Fluoroshield with DAPI (GTX30920).
