Whole cell extract (30 μg) was separated by 7.5% SDS-PAGE, and the membrane was blotted with FACL4 antibody [GT186] (GTX633365) diluted at 1:500.

FACL4 antibody [GT186] detects FACL4 protein at mitochondria by immunofluorescent analysis.
Sample: HeLa cells were fixed in ice-cold MeOH for 5 min.
Green: FACL4 stained by FACL4 antibody [GT186] (GTX633365) diluted at 1:100.
Blue: Hoechst 33342 staining.

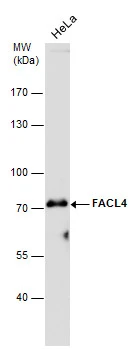

Whole cell extract (30 μg) was separated by 7.5% SDS-PAGE, and the membrane was blotted with FACL4 antibody [GT186] (GTX633365) diluted at 1:1000. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.

FACL4 antibody [GT186] detects FACL4 protein at cytoplasm by immunohistochemical analysis.
Sample: Paraffin-embedded mouse brain.
FACL4 stained by FACL4 antibody [GT186] (GTX633365) diluted at 1:500.
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

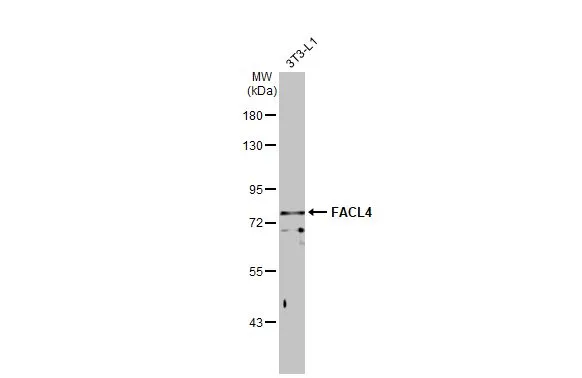

Whole cell extract (30 μg) was separated by 7.5% SDS-PAGE, and the membrane was blotted with FACL4 antibody [GT186] (GTX633365) diluted at 1:500. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody.
