FANCD2 (phospho Ser222) antibody

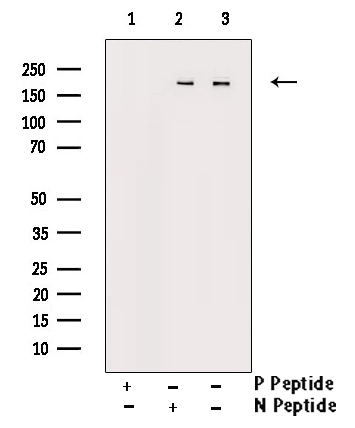

WB analysis of calyculin A treated HT29 whole cell lysate using GTX05195 FANCD2 (phospho Ser222) antibody. The lane on the left was treated with the antigen-specific peptide.

ICC/IF analysis of PFA fixed HeLa cells with LPS (4 hrs) treatment using GTX05195 FANCD2 (phospho-Ser222) antibody.
Red : Primary antibody
Green : beta tubulin
Blue : DAPI
Permeabilization : 0.1% Triton X-100

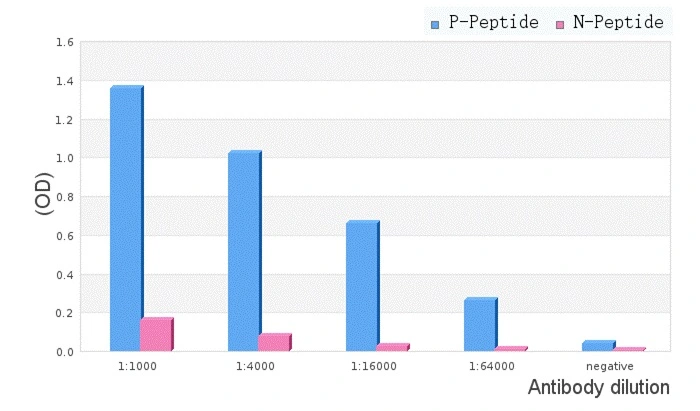

ELISA analysis of phospho- and non phosho- immunogen peptide using serially diluted GTX05195 FANCD2 (phospho-Ser222) antibody.
P-peptide : phospho-peptide
N-peptide : non-phospho-peptide
Peptides concentration : 1 μg/mL

IHC-P analysis of human breast carcinoma tissue using GTX05195 FANCD2 (phospho Ser222) antibody.
Antigen retrieval : Heat mediated antigen retrieval was performed in citrate buffer.
Dilution : 1:100
