Non-transfected (–) and transfected (+) 293T whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with G protein alpha 16 antibody (GTX118385) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Immunofluorescence analysis of paraformaldehyde-fixed HeLa, using G protein alpha 16(GTX118385) antibody at 1:500 dilution.

G protein alpha 16 antibody detects G protein alpha 16 protein at cytoplasm on CX-1 xenograft by immunohistochemical analysis.
Sample: Paraffin-embedded CX-1 xenograft.
G protein alpha 16 antibody (GTX118385) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

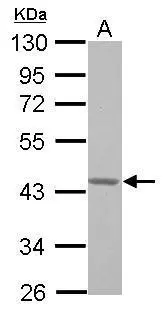

G protein alpha 16 antibody detects GNA15 protein by Western blot analysis.
A. 30 μg THP-1 whole cell lysate/extract
10 % SDS-PAGE
G protein alpha 16 antibody (GTX118385) dilution: 1:1000
