GDF15 (H Variant) antibody [7C12.B3.F2]

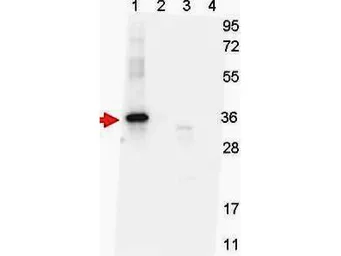

WB analysis of various samples using GTX48499 GDF15 (H Variant) antibody [7C12.B3.F2].
Lane 1 : SUMO-tagged NAG-1 H variant
Lane 2 : SUMO-tagged NAG-1 D variant
Lane 3 : NAG-1 H variant
Lane 4 : NAG-1 D variant
Dilution : 1:1000

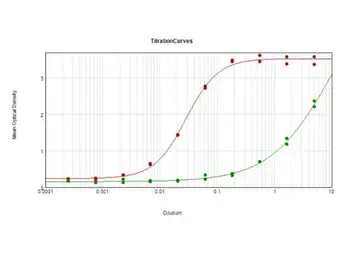

ELISA analysis of various samples using serially diluted GTX48499 GDF15 (H Variant) antibody [7C12.B3.F2].
Red : H variant
Green : D variant
Coating : 0.1 μg

Western blot shows detection of recombinant NAG-1 protein present in Pichia pastoris whole cell lysates: lane 1 - yeast cell lysate expressing NAG-1 H variant with SUMO expression tag at 36 kDa; lane 2 - yeast cell lysate expressing NAG-1 D variant with SUMO expression tag at 36 kDa; lane 3 - yeast cell lysate expressing NAG-1 H variant; and lane 4 - yeast cell lysate expressing NAG-1 D variant. All lysates were run under reducing conditions. Primary antibody was used at a 1:1,000 dilution in TBS containing 1% BSA and 0.2% Tween, and reacted overnight at 4ºC. For detection, a 1:40,000 dilution of peroxidase conjugated Goat-anti-Mouse IgG secondary antibody for 30 min at room temperature. Molecular weight estimation was made by comparison to prestained MW markers.
