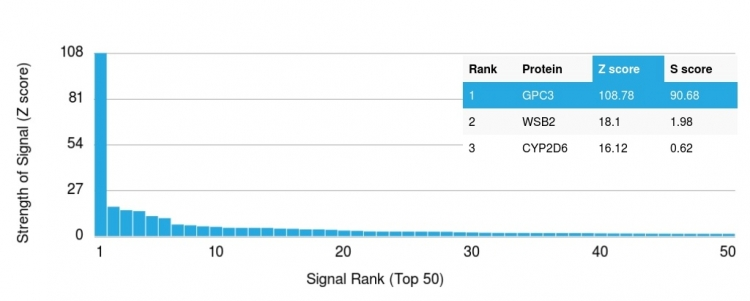

Analysis of Protein Array containing more than 19,000 full-length human proteins using Mouse Glypican-3 Recombinant Monoclonal Antibody (rGPC3/863). Z- and S- Score: The Z-score represents the strength of a signal that a monoclonal antibody produces when binding to a particular protein on the HuProtTM array. Z-scores are described in units of standard deviations (SD’s) above the mean value of all signals generated on that array. If targets on HuProtTM are arranged in descending order of the Z-score, the S-score is the difference (also in units of SD’s) between the Z-score. S-score therefore represents the relative target specificity of a Monoclonal Antibody to its intended target. A Monoclonal Antibody is considered to specific to its intended target if the Monoclonal Antibody has an S-score of at least 2.5. For example, if a Monoclonal Antibody binds to protein X with a Z-score of 43 and to protein Y with a Z-score of 14, then the S-score for the binding of that Monoclonal Antibody to protein X is equal to 29.

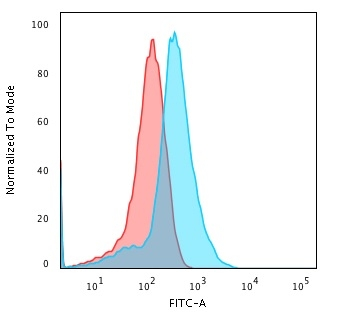

FACS analysis of MeOH-fixed HepG2 cells using GTX34764 Glypican-3 antibody [rGPC3/863].
Blue : Primary antibody
Red : Isotype control

IHC-P analysis of human hepatocellular carcinoma tissue using GTX34764 Glypican-3 antibody [rGPC3/863].

ICC/IF analysis of MeOH-fixed HepG2 cells using GTX34764 Glypican-3 antibody [rGPC3/863].
Green : Primary antibody
Red : nucleus
