ICC/IF analysis of HeLa cells using GTX25442 Hsp70 antibody [2A4]. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:200 overnight at 4ºC

ICC/IF analysis of A431 cells using GTX25442 Hsp70 antibody [2A4]. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:100 incubated overnight in a humidified chamber

ICC/IF analysis of NCI-H1299 Cells using GTX25442 Hsp70 antibody [2A4]. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:100 overnight at 4 ºC

IHC-P analysis of human tonsil tissue using GTX25442 Hsp70 antibody [2A4].
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:200

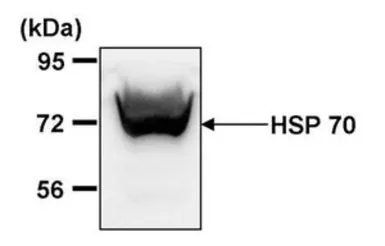

WB analysis of 30 ug of HEK293T whole cell lysate per well using GTX25442 Hsp70 antibody [2A4].
Dilution : 1:1000

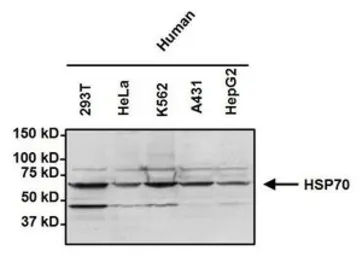

WB analysis of 50 ug of the indicated whole cell lysates using GTX25442 Hsp70 antibody [2A4].
Dilution : 1:1000

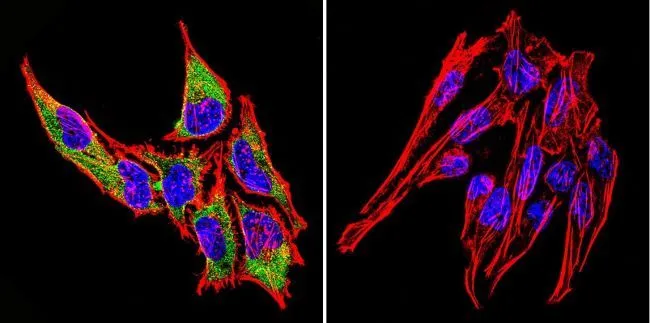

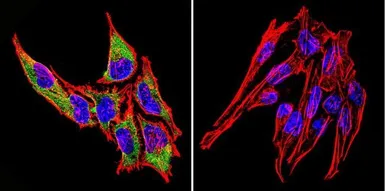

ICC/IF analysis of HeLa cells using GTX25442 Hsp70 antibody [2A4]. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:100 incubated overnight in a humidified chamber

IHC-P analysis of human breast tissue using GTX25442 Hsp70 antibody [2A4].
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:200

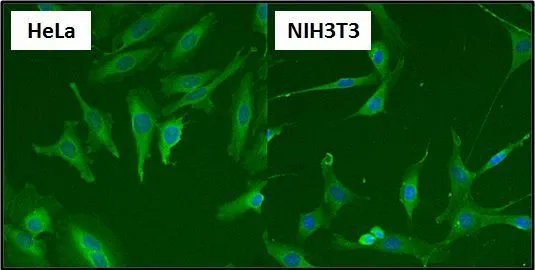

ICC/IF analysis of HeLa and NIH3T3 cells using GTX25442 Hsp70 antibody [2A4].
Green : Primary antibody
Blue : Nuclei
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 10 minutes
Dilution : 1:50 for at least 1 hour at room temperature

IP analysis of HeLa cell lysates using GTX25442 Hsp70 antibody [2A4].
IP reaction : 2μg antibody / 500μg lysate
Dilution : 1:1000

ICC/IF analysis of NIH-3T3 cells using GTX25442 Hsp70 antibody [2A4]. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:200 and incubated overnight in a humidified chamber

ICC/IF analysis of NIH-3T3 cells using GTX25442 Hsp70 antibody [2A4]. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:100 overnight at 4 ºC

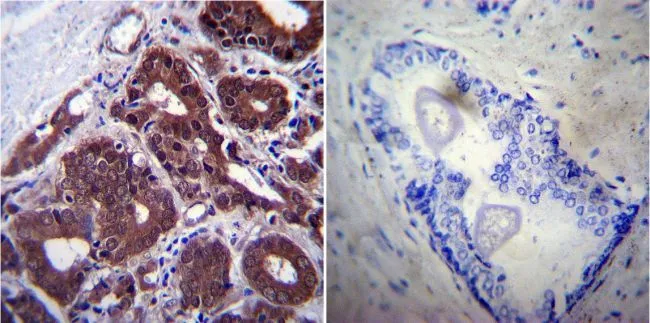

IHC-P analysis of human prostate carcinoma tissue using GTX25442 Hsp70 antibody [2A4].
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:200
