Hsp90 beta antibody [N2C2], Internal

Cat. No. GTX101423
1 1
Cat. No.  GTX101423
Orthogonal

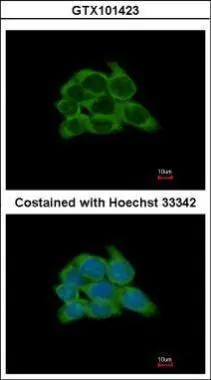

Anti-Hsp90 beta antibody [N2C2], Internal used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX101423
GTX101423 ICC/IF Image

Immunofluorescence analysis of methanol-fixed HCT116, using HSP90 beta(GTX101423) antibody at 1:500 dilution.

1 / 10

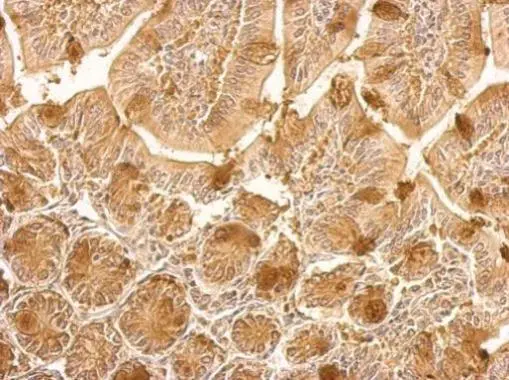

Anti-Hsp90 beta antibody [N2C2], Internal used in IHC (Paraffin sections) (IHC-P). GTX101423
GTX101423 IHC-P Image

HSP90 beta antibody [N2C2], Internal detects HSP90AB1 protein at cytosol on mouse colon by immunohistochemical analysis.
Sample: Paraffin-embedded mouse colon.
HSP90 beta antibody [N2C2], Internal (GTX101423) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

2 / 10
Anti-Hsp90 beta antibody [N2C2], Internal used in Western Blot (WB). GTX101423
GTX101423 WB Image

Sample(30 μg of whole cell lysate)
A:HeLa S3(GTX14654)
7.5% SDS PAGE
GTX101423 diluted at 1:2000

3 / 10

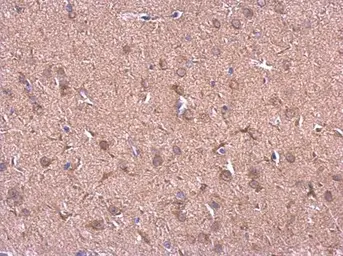

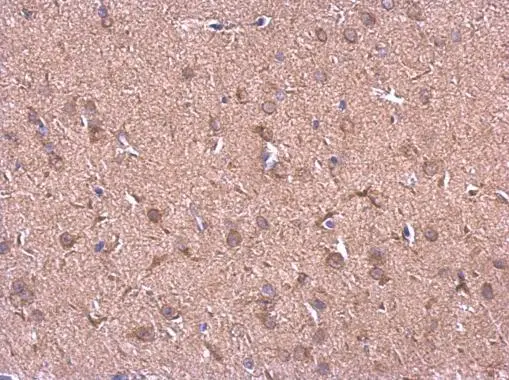

Anti-Hsp90 beta antibody [N2C2], Internal used in IHC (Paraffin sections) (IHC-P). GTX101423
GTX101423 IHC-P Image

HSP90 beta antibody [N2C2], Internal detects HSP90 beta protein at cytosol on rat hind brain by immunohistochemical analysis.
Sample: Paraffin-embedded rat hind brain.
HSP90 beta antibody [N2C2], Internal (GTX101423) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

4 / 10
Anti-Hsp90 beta antibody [N2C2], Internal used in Western Blot (WB). GTX101423
GTX101423 WB Image

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with HSP90 beta antibody [N2C2], Internal (GTX101423) diluted at 1:2000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

5 / 10
Anti-Hsp90 beta antibody [N2C2], Internal used in Western Blot (WB). GTX101423
GTX101423 WB Image

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with HSP90 beta antibody [N2C2], Internal (GTX101423) diluted at 1:2000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

6 / 10

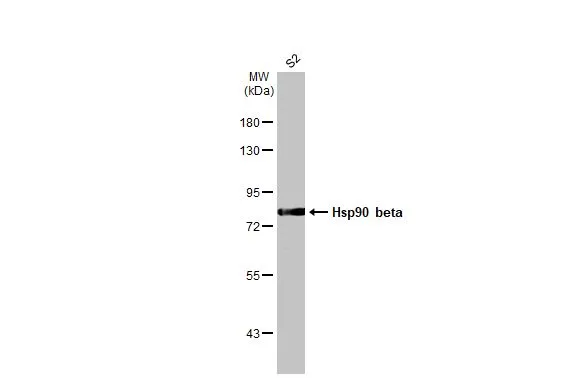

Anti-Hsp90 beta antibody [N2C2], Internal used in Western Blot (WB). GTX101423
GTX101423 WB Image

Drosophila Hsp83 is the homolog of mammalian Hsp90. (Gene ID: 38389/ UniProt: P02828)

Whole cell extract (30 μg) was separated by 7.5% SDS-PAGE, and the membrane was blotted with Hsp90 beta antibody [N2C2], Internal (GTX101423) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

7 / 10

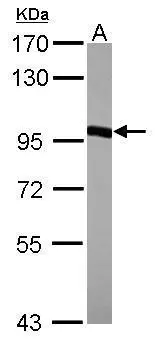

Anti-Hsp90 beta antibody [N2C2], Internal used in Western Blot (WB). GTX101423
GTX101423 WB Image

Sample (30 μg of whole cell lysate)
A: zebrafish eye
7.5% SDS PAGE
GTX101423 diluted at 1:1000

8 / 10

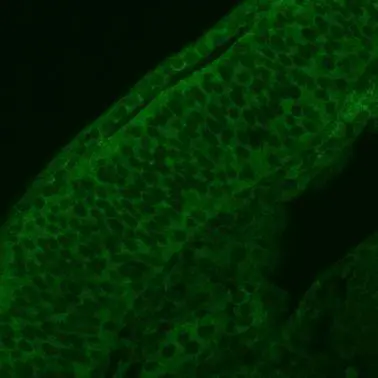

Anti-Hsp90 beta antibody [N2C2], Internal used in IHC (Whole mount) (IHC-Wm). GTX101423
GTX101423 IHC-Wm Image

Hsp90 beta antibody [N2C2], Internal detects Hsp90 beta protein at cytosol on whole-mount zebrafish embryos by immunohistochemical analysis.
Sample: Paraformaldehyde-fixed zebrafish embryos.
Hsp90 beta antibody [N2C2], Internal (GTX101423) dilution: 1:200.

9 / 10

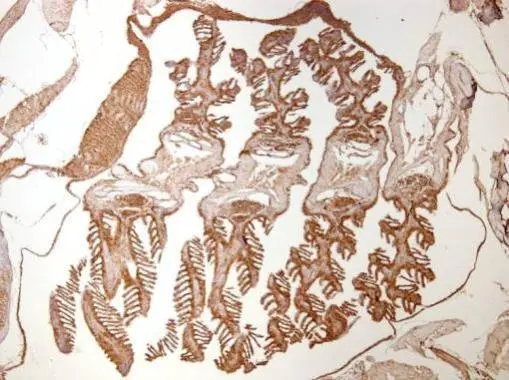

Anti-Hsp90 beta antibody [N2C2], Internal used in IHC (Paraffin sections) (IHC-P). GTX101423
GTX101423 IHC-P Image

Immunohistochemical analysis of paraffin-embedded zebrafish tissue, using Hsp90 beta antibody [N2C2], Internal (GTX101423) at 1:300 dilution.

10 / 10
Anti-Hsp90 beta antibody [N2C2], Internal used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX101423
Anti-Hsp90 beta antibody [N2C2], Internal used in IHC (Paraffin sections) (IHC-P). GTX101423
Anti-Hsp90 beta antibody [N2C2], Internal used in Western Blot (WB). GTX101423
Anti-Hsp90 beta antibody [N2C2], Internal used in IHC (Paraffin sections) (IHC-P). GTX101423
Anti-Hsp90 beta antibody [N2C2], Internal used in Western Blot (WB). GTX101423
Anti-Hsp90 beta antibody [N2C2], Internal used in Western Blot (WB). GTX101423
Anti-Hsp90 beta antibody [N2C2], Internal used in Western Blot (WB). GTX101423
Anti-Hsp90 beta antibody [N2C2], Internal used in Western Blot (WB). GTX101423
Anti-Hsp90 beta antibody [N2C2], Internal used in IHC (Whole mount) (IHC-Wm). GTX101423
Anti-Hsp90 beta antibody [N2C2], Internal used in IHC (Paraffin sections) (IHC-P). GTX101423
This Hsp90 beta antibody [N2C2], Internal (GTX101423) is a rabbit polyclonal antibody validated for detection of Hsp90 beta by WB, ICC/IF, IHC-P, and IHC-Wm. Reactivity has been shown in Human, Mouse, Rat, and other species.
  • Host
    Rabbit
  • Clonality
    Polyclonal
  • Isotype
    IgG
  • Applications
    WB ICC/IF IHC-P IHC-Wm
  • Reactivity
    Human, Mouse, Rat, Zebrafish, Drosophila
