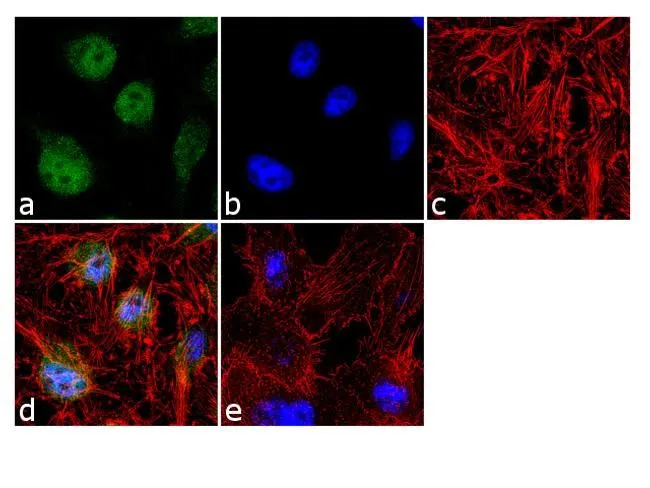

ICC/IF analysis of PC-3 cells using GTX79259 JunD antibody. Panel e is a no primary antibody control.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : 4% paraformaldehyde
Permeabilization : 0.1% Triton X-100 for 10 minute
Dilution : 2 μg/ml in 0.1% BSA and incubated for 3 hours at room temperature

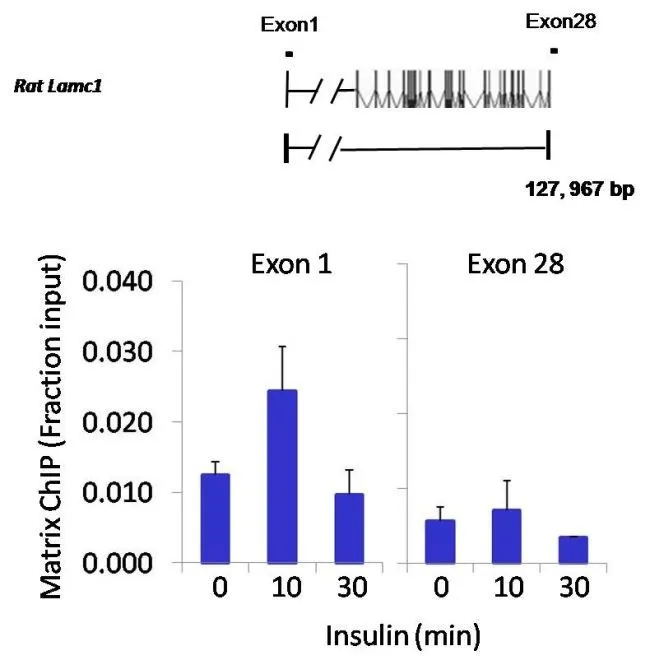

ChIP analysis of 1x10⁶ HTC-IR rat hepatoma cells treated with insulin for 0, 10, and 30 minutes using GTX79259 JunD antibody. Immunoprecipitation was performed using a multiplex microplate Matrix ChIP assay (refer to PMID: 22098709). The precipitated DNA was detected by PCR with primer set targeting to exon-1 or exon-28 of the LAMC1 gene.
IP reaction : 1.0ul antibody / 100ul sample
