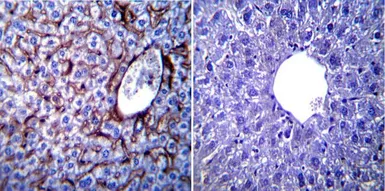

IHC-P analysis of mouse liver tissue using GTX22898 KDEL antibody.
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:100

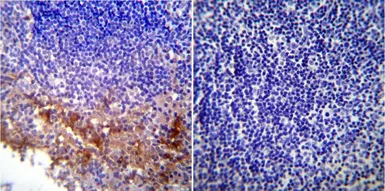

IHC-P analysis of mouse lymph node tissue using GTX22898 KDEL antibody.
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:200

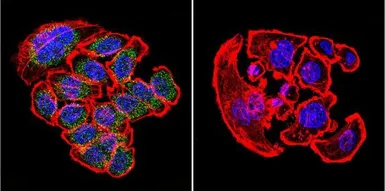

ICC/IF analysis of U251 cells using GTX22898 KDEL antibody. Cells were probed without (right) or with(left) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : formaldehyde
Dilution : 1:200 overnight at 4ºC

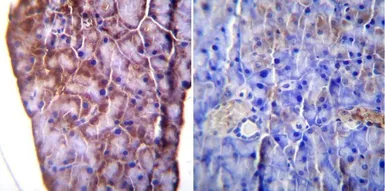

IHC-P analysis of mouse pancreas tissue using GTX22898 KDEL antibody.
Left : Primary antibody
Right : Negative control without primary antibody
Antigen retrieval : heat induced antigen retrieval was performed using 10mM sodium citrate (pH6.0) buffer, microwaved for 8-15 minutes
Dilution : 1:100

FACS analysis of permeabilized, fixed HeLa cells using GTX22898 KDEL antibody.
Purple histogram : Primary antibody
Black histogram : Isotype control antibody
Dilution : 10 μg/ml incubated for 1 hour on ice
