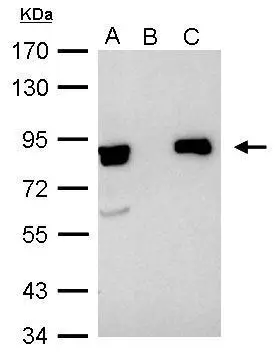

Ku80(XRCC5) antibody immunoprecipitates Ku80 protein in IP experiments. IP Sample: 1000 μg HeLa whole cell lysate/extract A. 40 μg HeLa whole cell lysate/extract B. Control with 2.5 μg of preimmune rabbit IgG C. Immunoprecipitation of Ku80 protein by 2.5 μg of Ku80 antibody (GTX109935) 7.5% SDS-PAGE The immunoprecipitated Ku80 protein was detected by Ku80 antibody (GTX109935) diluted at 1:1000. EasyBlot anti-rabbit IgG (GTX221666-01) was used as a secondary reagent.

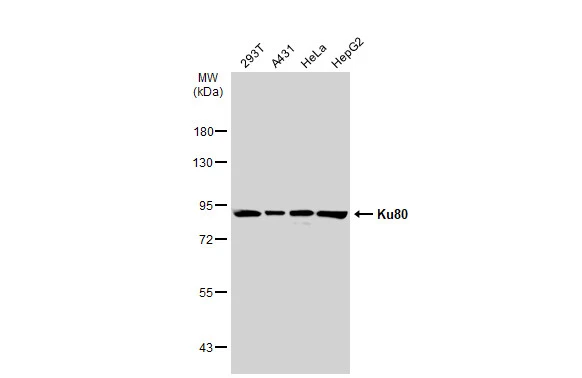

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with Ku80 antibody [N3C2], Internal (GTX109935) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with Ku80 antibody [N3C2], Internal (GTX109935) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Whole cell extract (30 μg) was separated by 7.5% SDS-PAGE, and the membrane was blotted with Ku80 antibody [N3C2], Internal (GTX109935) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Immunohistochemical analysis of paraffin-embedded Cal27 Xenograft, using Ku80 (XRCC5)(GTX109935) antibody at 1:100 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

Ku80 antibody [N3C2], Internal detects Ku80 protein at nucleus by immunofluorescent analysis.
Sample: HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: Ku80 stained by Ku80 antibody [N3C2], Internal (GTX109935) diluted at 1:1000.
Red: phalloidin, a cytoskeleton marker, diluted at 1:200.
Scale bar= 10 μm.
