Various whole cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with LIMCH1 antibody [C2C3], C-term (GTX108649) diluted at 1:3000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody. Corresponding RNA expression data for the same cell lines are based on Human Protein Atlas program.

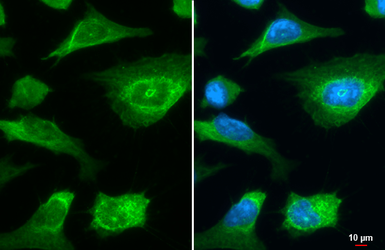

LIMCH1 antibody [C2C3], C-term detects LIMCH1 protein at stress fiber by immunofluorescent analysis.
Sample: HeLa cells were fixed in ice-cold MeOH for 5 min.
Green: LIMCH1 stained by LIMCH1 antibody [C2C3], C-term (GTX108649) diluted at 1:500.

Wild-type (WT) and LIMCH1 knockout (KO) HeLa cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with LIMCH1 antibody [C2C3], C-term (GTX108649) diluted at 1:3000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

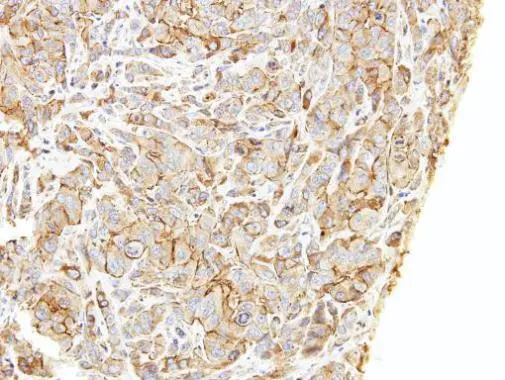

Immunohistochemical analysis of paraffin-embedded A549 xenograft, using LIMCH1(GTX108649) antibody at 1:500 dilution.
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

(30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with LIMCH1 antibody [C2C3], C-term (GTX108649) diluted at 1:3000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
