Munc18 antibody

ICC/IF analysis of U-87 MG cells using GTX23451 Munc18 antibody. Panel e is a no primary antibody control.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : 4% paraformaldehyde
Permeabilization : 0.1% Triton X-100 for 10 minute
Dilution : 2 μg/ml in 0.1% BSA incubated for 3 hours at room temperature

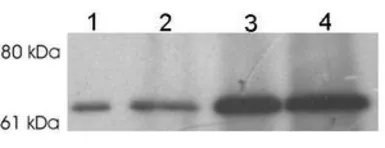

IP analysis of rat brain homogenate using GTX23451 Munc18 antibody.
Lane 1 : Extract only
Lane 2 - 4 : 750 μg of extract immunoprecipitated with 1 ug, 5 ug, and 10 μg GTX23451 Munc18 antibody, respectively

WB analysis of tissue extract of mouse brain (30 μg lysate) (Lane 1) using GTX23451 Munc18 antibody.
Dilution : 2 μg/ml
