N-Cadherin antibody [N2C1], Internal

N-Cadherin antibody [N2C1], Internal detects N-Cadherin protein expression by immunohistochemical analysis.
Sample: Frozen sectioned E13.5 Rat brain.
Green: N-Cadherin protein stained by N-Cadherin antibody [N2C1], Internal (GTX112733) diluted at 1:250.
Red: beta Tubulin 3/ TUJ1, a mature neuron marker, stained by beta Tubulin 3/ TUJ1 antibody [GT11710] (GTX631836) diluted at 1:500.
Blue: Fluoroshield with DAPI (GTX30920).

Wild-type (WT) and N-Cadherin knockout (KO) 293T cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with N-Cadherin antibody [N2C1], Internal (GTX112733) diluted at 1:500. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

N-Cadherin antibody [N2C1], Internal detects CDH2 protein at membrane on human hepatoma by immunohistochemical analysis.
Sample: Paraffin-embedded hepatoma.
N-Cadherin antibody [N2C1], Internal (GTX112733) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

Rat tissue extract (50 μg) was separated by 7.5% SDS-PAGE, and the membrane was blotted with N-Cadherin antibody [N2C1], Internal (GTX112733) diluted at 1:1000.

Immunohistochemical analysis of paraffin-embedded Mahlarvu xenograft, using N-Cadherin(GTX112733) antibody at 1:500 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

Mouse tissue extract (50 μg) was separated by 7.5% SDS-PAGE, and the membrane was blotted with N-Cadherin antibody [N2C1], Internal (GTX112733) diluted at 1:1000.

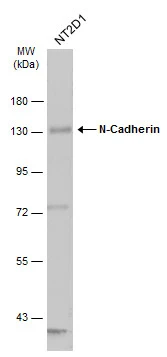

Whole cell extract (30 μg) was separated by 7.5% SDS-PAGE, and the membrane was blotted with N-Cadherin antibody [N2C1], Internal (GTX112733) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
