NDP52 antibody [GT1813]

NDP52 antibody detects NDP52 protein by western blot analysis. Un-treated (-) and treated (+, Thapsigargin treatment for 12hrs and 24hrs) Huh-7 whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with NDP52 antibody (GTX630397) diluted by 1:500.
The ACTB was used as internal control (GTX110564, 1:50000) shown at the bottom panel.

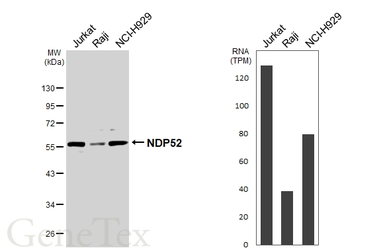

Various whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with NDP52 antibody [GT1813] (GTX630397) diluted at 1:1000. The HRP-conjugated anti-mouse IgG antibody (GTX213111-01) was used to detect the primary antibody. Corresponding RNA expression data are based on Human Protein Atlas program.

NDP52 antibody [GT1813] detects NDP52 protein by western blot analysis.
A. 30 μg Huh7 whole cell lysate/extract
B. 30 μg Hep3B whole cell lysate/extract
C. 30 μg HepG2 whole cell lysate/extract
10 % SDS-PAGE
NDP52 antibody [GT1813] (GTX630397) dilution: 1:1000

NDP52 antibody detects NDP52 protein by western blot analysis. Un-treated (-) and treated (+, Thapsigargin treatment for 12hrs and 24hrs) HepG2 whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with NDP52 antibody (GTX630397) diluted by 1:500.
The ACTB was used as internal control (GTX110564, 1:50000) shown at the bottom panel.

Non-transfected (–) and transfected (+) HepG2 whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with NDP52 antibody [GT1813] (GTX630397) diluted at 1:1000.

NDP52 antibody [GT1813] detects NDP52 protein at autophagosome by immunofluorescent analysis.
Samples: HeLa cells mock (left) and treated with 50μM Chloroquine for 24 hr (right) were fixed in 4% paraformaldehyde at RT for 15 min.
Green: NDP52 protein stained by NDP52 antibody [GT1813] (GTX630397) diluted at 1:1000.
Red: Phalloidin, a F-actin marker.
