NDUFS3 antibody

KO/KD

Cat No. GTX105835

Host Rabbit
Clonality Polyclonal
Isotype IgG
Application WB, ICC/IF, IHC-P
Reactivity Human, Mouse
APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.
Application Dilution
WB 1:500-1:3000
ICC/IF 1:100-1:1000
IHC-P 1:100-1:1000
Not tested in other applications.

Calculated MW

30 kDa. ( Note )

Positive Control

293T , Jurkat , Raji , NCI-H929

Predict Reactivity

Rat, Zebrafish, Bovine, Chicken, Pig, Xenopus laevis, Chimpanzee, Rhesus Monkey(>80% identity)
PROPERTIES

Form

Liquid

Buffer

1XPBS, 20% Glycerol (pH7). 0.01% Thimerosal was added as a preservative.

Storage

Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.

Concentration

1mg/ml(Please refer to the vial label for the specific concentration.)

Antigen Species

Human

Immunogen

Recombinant protein encompassing a sequence within the center region of human NDUFS3. The exact sequence is proprietary.

Purification

Purified by antigen-affinity chromatography.

Conjugation

Unconjugated

Note

For laboratory use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.
TARGET

Synonyms

CI-30 Antibody, NADH dehydrogenase (ubiquinone) Fe-S protein 3, 30kDa (NADH-coenzyme Q reductase) Antibody

Cellular Localization

Mitochondrion inner membrane

Background

This gene encodes one of the iron-sulfur protein (IP) components of mitochondrial NADH:ubiquinone oxidoreductase (complex I). Mutations in this gene are associated with Leigh syndrome resulting from mitochondrial complex I deficiency.

Database

Research Area

DATA IMAGES

GTX105835 WB Image

KO/KD

Wild-type (WT) and NDUFS3 knockout (KO) 293T cell extracts (30 µg) were separated by 12% SDS-PAGE, and the membrane was blotted with NDUFS3 antibody (GTX105835) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
CRISPR knockout cell lines generated by www.edigene.com

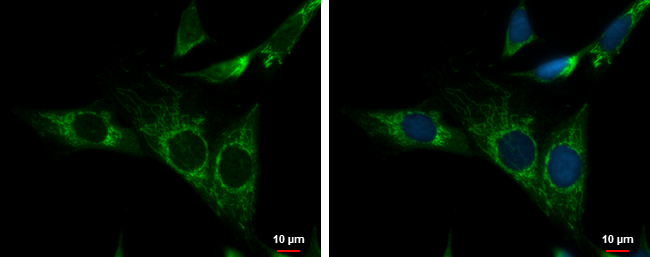

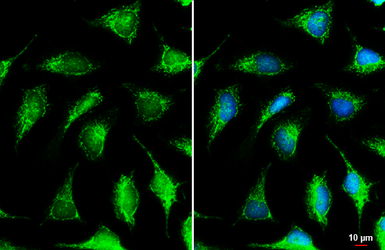

GTX105835 ICC/IF Image

NDUFS3 antibody detects NDUFS3 protein at mitochondria by immunofluorescent analysis.
Sample: SK-N-SH cells were fixed in 2% paraformaldehyde/culture medium at 37℃ for 30 min.
Green: NDUFS3 protein stained by NDUFS3 antibody (GTX105835) diluted at 1:500.
Blue: Hoechst 33342 staining.

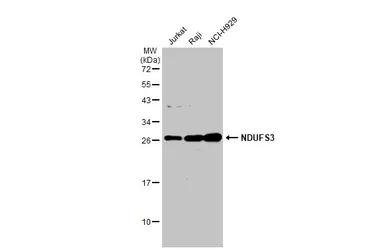

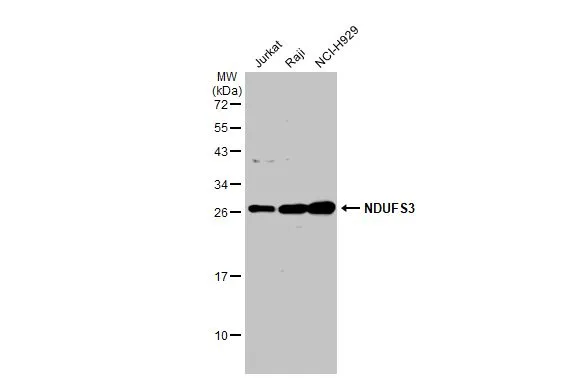

GTX105835 WB Image

NDUFS3 antibody detects NDUFS3 protein by western blot analysis. Various whole cell extracts (30 μg) were separated by 12% SDS-PAGE, and the membrane was blotted with NDUFS3 antibody (GTX105835) diluted by 1:1000.

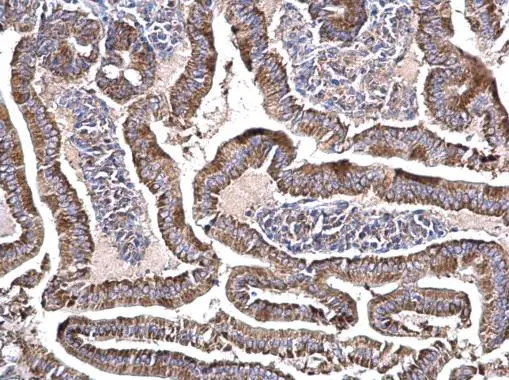

GTX105835 IHC-P Image

NDUFS3 antibody detects NDUFS3 protein at cytosol on mouse duodenum by immunohistochemical analysis.
Sample: Paraffin-embedded mouse duodenum.
NDUFS3 antibody (GTX105835) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min

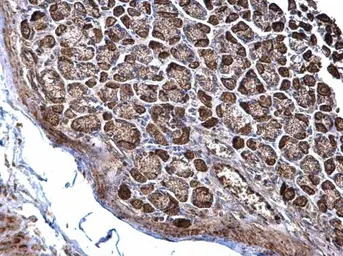

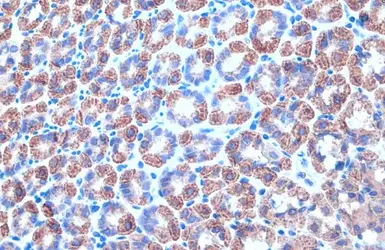

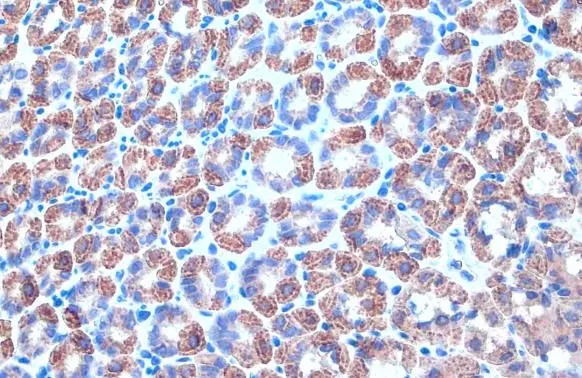

GTX105835 IHC-P Image

NDUFS3 antibody detects NDUFS3 protein at cytosol on mouse stomach by immunohistochemical analysis.
Sample: Paraffin-embedded mouse stomach.
NDUFS3 antibody (GTX105835) dilution: 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min
