NDUFV1 antibody [N3C3]

KO/KD

Cat No. GTX102209

Host Rabbit
Clonality Polyclonal
Isotype IgG
Application WB, IHC-P
Reactivity Human, Mouse
APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.
Application Dilution
WB 1:500-1:3000
IHC-P 1:100-1:1000
Not tested in other applications.

Calculated MW

51 kDa. ( Note )

Positive Control

293T

Predict Reactivity

Rat, Zebrafish, Bovine, Chicken, Xenopus laevis, Chimpanzee(>80% identity)
PROPERTIES

Form

Liquid

Buffer

0.1M Tris, 0.1M Glycine, 10% Glycerol (pH7). 0.01% Thimerosal was added as a preservative.

Storage

Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.

Concentration

1 mg/ml (Please refer to the vial label for the specific concentration.)

Antigen Species

Human

Immunogen

Recombinant protein encompassing a sequence within the center region of human NDUFV1. The exact sequence is proprietary.

Purification

Purified by antigen-affinity chromatography.

Conjugation

Unconjugated

Note

For laboratory use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.
TARGET

Synonyms

Nadh:Ubiquinone Oxidoreductase Core Subunit V1,Ci-51K,Ci51Kd,Uqor1,Ndufv1

Cellular Localization

Mitochondrion inner membrane; Peripheral membrane protein; Matrix side

Background

The NDUFV1 gene encodes the 51-kD subunit of complex I (NADH:ubiquinone oxidoreductase) of the mitochondrial respiratory chain.[supplied by OMIM]

Database

Research Area

DATA IMAGES

GTX102209 WB Image

KO/KD

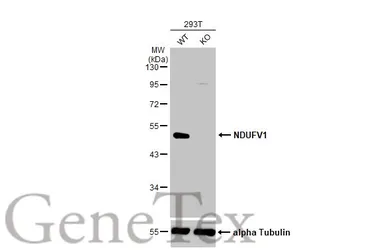

Wild-type (WT) and NDUFV1 knockout (KO) 293T cell extracts (30 µg) were separated by 10% SDS-PAGE, and the membrane was blotted with NDUFV1 antibody [N3C3] (GTX102209) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.
CRISPR knockout cell lines generated by www.edigene.com


GTX102209 IHC-P Image

NDUFV1 antibody [N3C3] detects NDUFV1 protein at cytoplasm on mouse kidney by immunohistochemical analysis.
Sample: Paraffin-embedded mouse kidney.
NDUFV1 antibody [N3C3] (GTX102209) diluted at 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min


GTX102209 IHC-P Image

NDUFV1 antibody [N3C3] detects NDUFV1 protein at cytoplasm on mouse stomach by immunohistochemical analysis.
Sample: Paraffin-embedded mouse stomach.
NDUFV1 antibody [N3C3] (GTX102209) diluted at 1:500.

Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min


GTX102209 IHC-P Image

Immunohistochemical analysis of paraffin-embedded U373 xenograft, using NDUFV1(GTX102209) antibody at 1:500 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min
