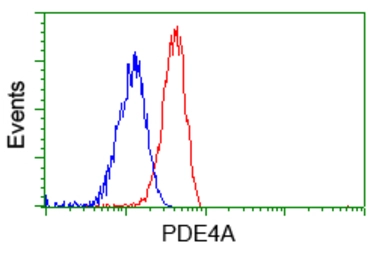

FACS analysis of Jurkat cells using GTX83922 PDE4A antibody [7B11].
Red : Primary antibody
Blue : Negative control antibody

IHC-P analysis of human prostate carcinoma tissue using GTX83922 PDE4A antibody [7B11].
Antigen retrieval : Heat-induced epitope retrieval by 10mM citrate buffer, pH6.0, 100ºC for 10min.
Dilution : 1:50

ICC/IF analysis of HT29 cells using GTX83922 PDE4A antibody [7B11].

ICC/IF analysis of COS7 cells transiently transfected with PDE4A plasmid using GTX83922 PDE4A antibody [7B11].

IHC-P analysis of human ovary adenocarcinoma tissue using GTX83922 PDE4A antibody [7B11].
Antigen retrieval : Heat-induced epitope retrieval by 10mM citrate buffer, pH6.0, 100ºC for 10min.
Dilution : 1:50

IHC-P analysis of human endometrium tissue using GTX83922 PDE4A antibody [7B11].
Antigen retrieval : Heat-induced epitope retrieval by 10mM citrate buffer, pH6.0, 100ºC for 10min.
Dilution : 1:50

IHC-P analysis of human prostate tissue using GTX83922 PDE4A antibody [7B11].
Antigen retrieval : Heat-induced epitope retrieval by 10mM citrate buffer, pH6.0, 100ºC for 10min.
Dilution : 1:50

WB analysis of various cell lines using GTX83922 PDE4A antibody [7B11].
Loading : 10 ug per lane
Dilution : 1:200

IHC-P analysis of human colon tissue using GTX83922 PDE4A antibody [7B11].
Antigen retrieval : Heat-induced epitope retrieval by 10mM citrate buffer, pH6.0, 100ºC for 10min.
Dilution : 1:50

WB analysis of HEK293T cells transfected with PDE4A plasmid (Right) or empty vector (Left) for 48 hrs using GTX83922 PDE4A antibody [7B11].
Loading : 5 ug per lane

IHC-P analysis of human kidney tissue using GTX83922 PDE4A antibody [7B11].
Antigen retrieval : Heat-induced epitope retrieval by 10mM citrate buffer, pH6.0, 100ºC for 10min.
Dilution : 1:50

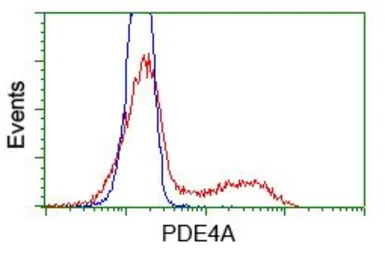

FACS analysis of HEK293T cells transfected with either PDE4A plasmid(Red) or empty vector control plasmid(Blue) using GTX83922 PDE4A antibody [7B11].
