PDGF Receptor alpha antibody [N2C2], Internal

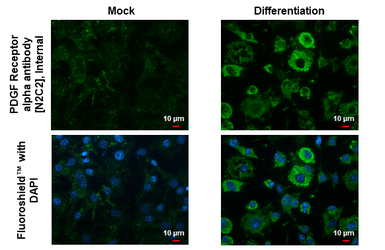

PDGF Receptor alpha antibody [N2C2], Internal detects PDGF Receptor alpha protein by immunofluorescent analysis.
Sample: Mock and differentiated 3T3-L1 cells were fixed in ice-cold MeOH for 5 min.
Green: PDGF Receptor alpha stained by PDGF Receptor alpha antibody [N2C2], Internal (GTX107903) diluted at 1:500.
Blue: Fluoroshield with DAPI (GTX30920).

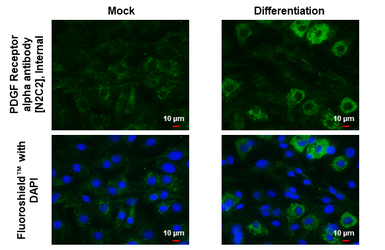

PDGF Receptor alpha antibody [N2C2], Internal detects PDGF Receptor alpha protein by immunofluorescent analysis.
Sample: Mock and treated 3T3-L1 cells were fixed in ice-cold MeOH for 5 min.
Green: PDGF Receptor alpha stained by PDGF Receptor alpha antibody [N2C2], Internal (GTX107903) diluted at 1:500.
Blue: Fluoroshield™ with DAPI (GTX30920).

Various whole cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with PDGF Receptor alpha antibody [N2C2], Internal (GTX107903) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody. Corresponding RNA expression data for the same cell lines are based on Human Protein Atlas program.

Various whole cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with PDGF Receptor alpha antibody [N2C2], Internal (GTX107903) diluted at 1:2000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.

Sample (30 ug of whole cell lysate)

A: K562

5% SDS PAGE

GTX107903 diluted at 1:1000

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with PDGF Receptor alpha antibody [N2C2], Internal (GTX107903) diluted at 1:500.

Human tissue extract (30 μg) was separated by 5% SDS-PAGE, and the membrane was blotted with PDGF Receptor alpha antibody [N2C2], Internal (GTX107903) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.
