PSMB6 antibody

ICC/IF analysis of 3T3 cells using GTX23331 PSMB6 antibody. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Fixation : 4% paraformaldehyde
Permeabilization : 0.1% Triton X-100 in PBS for 15 minutes
Dilution : 5 μg/ml for 1 hour at room temperature

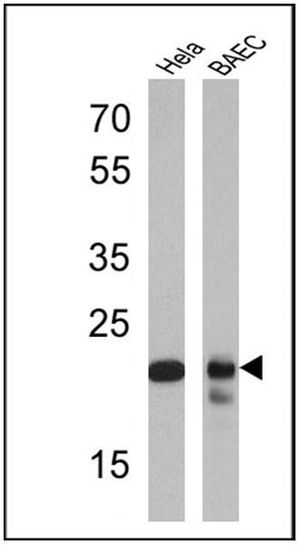

WB analysis of 25 ug of Hela (lane 1) and BAEC (lane 2) cell lysates using GTX23331 PSMB6 antibody.
Dilution : 1:1000

ICC/IF analysis of Hela cells using GTX23331 PSMB6 antibody. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:20 overnight at 4ºC

ICC/IF analysis of A431 cells using GTX23331 PSMB6 antibody. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:20 overnight at 4ºC

ICC/IF analysis of BAEC cells using GTX23331 PSMB6 antibody. Cells were probed without (left) or with(right) an antibody.
Green : Primary antibody
Blue : Nuclei
Red : Actin
Fixation : Formalin
Permeabilization : 0.1% Triton X-100 in TBS for 5-10 minute
Dilution : 1:20 overnight at 4ºC
