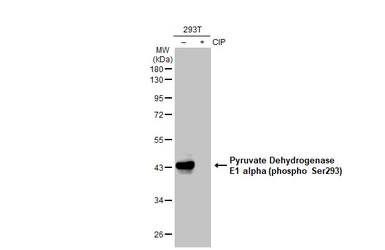

Untreated (–) and treated (+) 293T whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with Pyruvate Dehydrogenase E1 alpha (phospho Ser293) antibody [GT1301] (GTX03213) diluted at 1:500. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

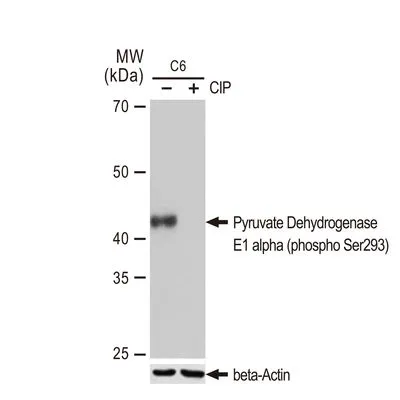

WB analysis of C6 cells were treated by CIP(20uL/400ul) at 37ºC for 1 hour using GTX03213 Pyruvate Dehydrogenase E1 alpha (phospho Ser293) antibody [GT1301].
Dilution : 1:1000
Loading : 25μg per lane

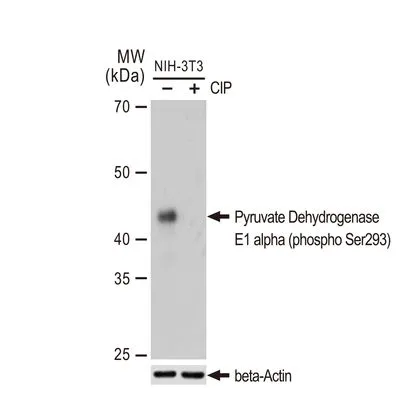

WB analysis of NIH-3T3 cells were treated by CIP(20uL/400ul) at 37ºC for 1 hour using GTX03213 Pyruvate Dehydrogenase E1 alpha (phospho Ser293) antibody [GT1301].
Dilution : 1:1000
Loading : 25μg per lane

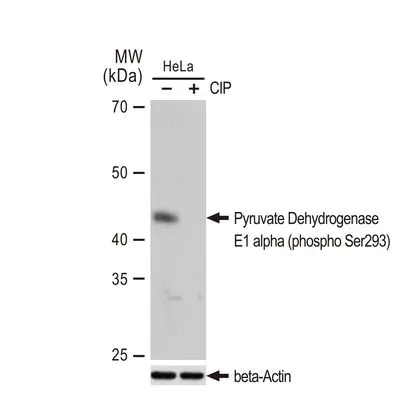

WB analysis of HeLa cells were treated by CIP(20uL/400ul) at 37ºC for 1 hour using GTX03213 Pyruvate Dehydrogenase E1 alpha (phospho Ser293) antibody [GT1301].
Dilution : 1:1000
Loading : 25μg per lane
