*Optimal dilutions/concentrations should be determined by the researcher.
Not tested in other applications.
293T , A431 , HeLa , HepG2
Rat, Bovine, Chicken, Rhesus Monkey(>80% identity)
0.1M Tris-Glycine (pH7), 10% Glycerol
Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.
1 mg/ml (Please refer to the vial label for the specific concentration.)
Recombinant protein encompassing a sequence within the center region of human Raf1. The exact sequence is proprietary.
Purified by antigen-affinity chromatography.
For laboratory use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.
Raf-1 proto-oncogene, serine/threonine kinase , CMD1NN , CRAF , NS5 , Raf-1 , c-Raf
This gene is the cellular homolog of viral raf gene (v-raf). The encoded protein is a MAP kinase kinase kinase (MAP3K), which functions downstream of the Ras family of membrane associated GTPases to which it binds directly. Once activated, the cellular RAF1 protein can phosphorylate to activate the dual specificity protein kinases MEK1 and MEK2, which in turn phosphorylate to activate the serine/threonine specific protein kinases, ERK1 and ERK2. Activated ERKs are pleiotropic effectors of cell physiology and play an important role in the control of gene expression involved in the cell division cycle, apoptosis, cell differentiation and cell migration. Mutations in this gene are associated with Noonan syndrome 5 and LEOPARD syndrome 2. [provided by RefSeq]

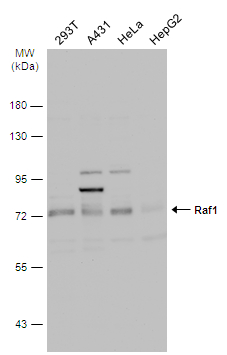

GTX111588 WB Image
Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with Raf1 antibody [N1C1-2] (GTX111588) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
GTX111588 ICC/IF Image
Immunofluorescence analysis of methanol-fixed HeLa, using Raf1(GTX111588) antibody at 1:200 dilution.
GTX111588 IHC-P Image
Immunohistochemical analysis of paraffin-embedded MCF7 xenograft, using Raf1(GTX111588) antibody at 1:500 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min
GTX111588 WB Image
Non-transfected (–) and transfected (+) 293T whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with Raf1 antibody [N1C1-2] (GTX111588) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
