SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402]

Cat. No. GTX635713

Host	Rabbit
Clonality	Monoclonal
Clone Name	HL13402
Isotype	IgG
Application	WB, ICC/IF, ELISA, Sandwich ELISA
Reactivity	SARS Coronavirus 2
Package	100 μl ($399), 25 μl ($169)

See all SARS-CoV-2 (COVID-19) Spike products

Datasheet
Document

View product citations for antibody GTX635713 on CiteAb

APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.

Application	Recommended Dilution
WB	1:1000-1:10000
ICC/IF	Assay dependent
ELISA	Assay dependent
Sandwich ELISA	Assay dependent
Note : Sandwich ELISA Capture : GTX632604 / GTX636042, Detection: GTX635713

Not tested in other applications.

Product Note

This antibody detects SARS-CoV-2 Spike protein, but does not cross-react with SARS-CoV or MERS-CoV spike proteins based on our internal testing.

PROPERTIES

Form

Liquid

Buffer

PBS

Preservative

No preservative

Storage

Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.

Concentration

1 mg/ml (Please refer to the vial label for the specific concentration.)

Antigen Species

SARS Coronavirus 2

Immunogen

Carrier-protein conjugated synthetic peptide encompassing a sequence within the center region of SARS-CoV-2 (COVID-19) Spike (SARS-CoV-2 (strain Wuhan-Hu-1)). The exact sequence is proprietary.

Purification

Affinity purified by Protein A.

Conjugation

Unconjugated

RRID

AB_2888570

Note

For laboratory research use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.

Purchasers shall not, and agree not to enable third parties to, analyze, copy, reverse engineer or otherwise attempt to determine the structure or sequence of the product.

TARGET

Synonyms

2019-nCoV Spike , SARS-CoV-2 Spike , COVID-19 Spike

Research Area

DATA IMAGES

GTX635713 ELISA Image

Indirect ELISA analysis was performed by coating the plate with recombinant SARS-CoV-2 spike (ECD) trimer, omicron BA.2.75 variant, His tag (GTX137533-pro) (28.62-0.45 nM). Coated protein was probed with (the specified SARS-CoV-2 (COVID-19) Spike antibodies) (1 μg/mL). Goat anti-rabbit IgG antibody (HRP) (GTX213110-01) (1:10000) was used to detect the bound primary antibody.

GTX635713 ELISA Image

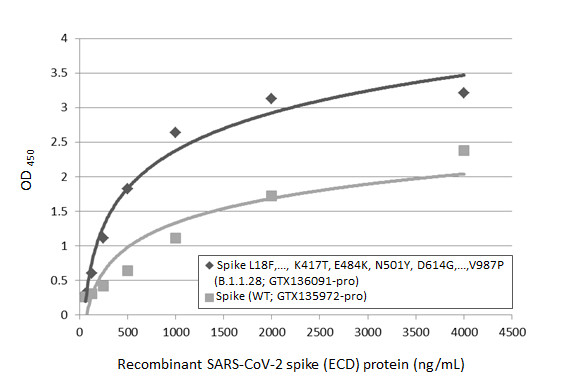

Indirect ELISA analysis performed by coating plate with recombinant SARS-CoV-2 (COVID-19) Spike (L18F,..., K417T, E484K, N501Y, D614G,...,V987P)(ECD), His tag (active) (B.1.1.28) (GTX136091-pro) and SARS-CoV-2 (COVID-19) Spike (ECD) protein, His tag (active) (WT) (GTX135972-pro) (4000-62.5 ng/mL). Coated protein was probed with SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713) (1 μg/mL). Rabbit IgG antibody (HRP) (GTX213110-01) (1:10000) was used to detect bound primary antibody.

GTX635713 ELISA Image

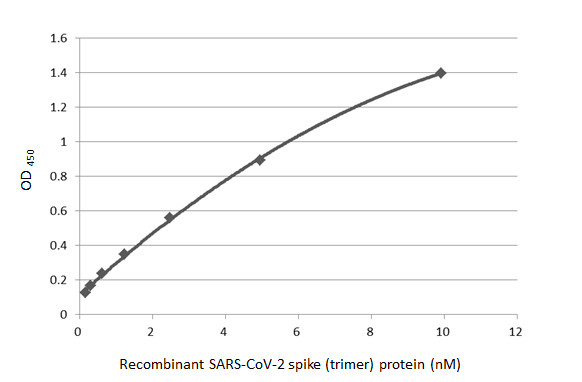

Sandwich ELISA detection of recombinant SARS-CoV-2 spike (trimer) protein using antibodies as below.
Capture: SARS-CoV / SARS-CoV-2 (COVID-19) spike antibody [1A9] (GTX632604) (5 μg/mL)
Detection: SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713) (1 μg/mL).

GTX635713 WB Image

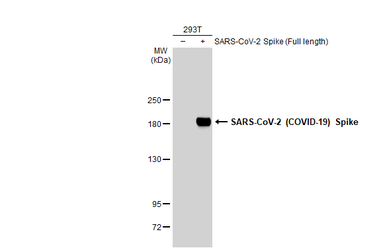

Non-transfected (–) and transfected (+) 293T whole cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713) diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

GTX635713 ELISA Image

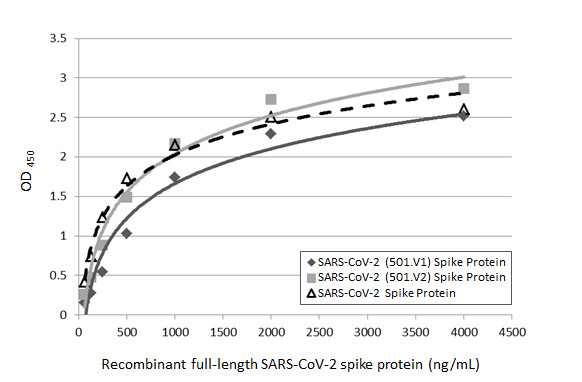

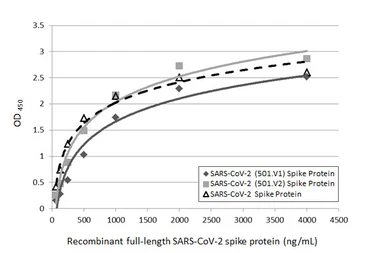

Indirect ELISA analysis performed by coating plate with recombinant full-length SARS-CoV-2 (501.V1) spike protein, SARS-CoV-2 (501.V2) spike protein and SARS-CoV-2 spike protein (4000-62.5 ng/mL). Coated protein was probed with SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713) (1 μg/mL). Rabbit IgG antibody (HRP) (GTX213110-01) (1:10000) was used to detect bound primary antibody.

GTX635713 ELISA Image

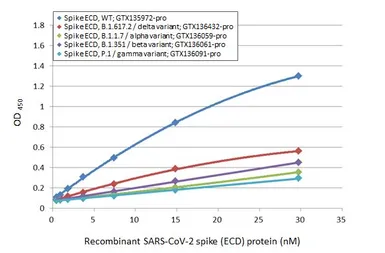

Sandwich ELISA detection of recombinant Spike ECD protein(s) derived from different strains of SARS-CoV-2 virus (ie., Wild type; B.1.1.7 alpha variant; B.1.351 beta variant; P.1 gamma variant; B1.617.2 delta variant) using antibodies as below.

Capture: SARS-CoV / SARS-CoV-2 (COVID-19) spike antibody [1A9] (GTX632604) (5 μg/mL)
Detection: SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713) (1 μg/mL)

GTX635713 ELISA Image

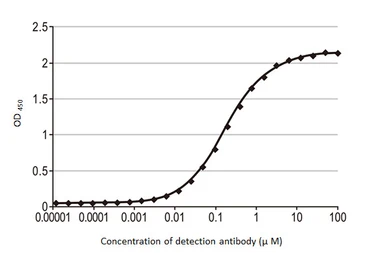

Indirect ELISA analysis performed by coating plate with recombinant full-length SARS-CoV-2 spike (trimer) protein (50 ng). Coated protein was probed with SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713) (100-1.19*10^-5 μM). Rabbit IgG antibody (HRP) (GTX213110-01) (1:10000) was used to detect bound primary antibody.
EC50 : 0.19 μM

GTX635713 ELISA Image

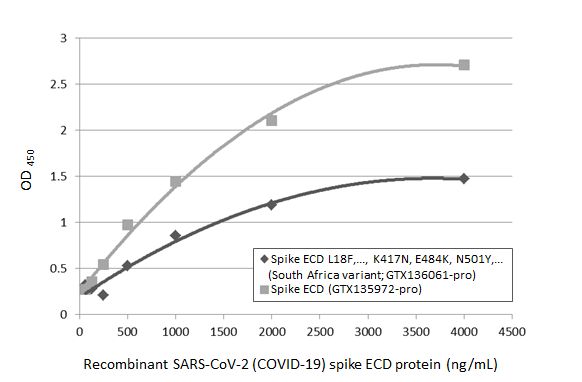

Indirect ELISA analysis performed by coating plate with recombinant SARS-CoV-2 (COVID-19) Spike ( L18F,..., K417N, E484K, N501Y,...)(ECD) Protein, His tag (active) (South Africa variant) (GTX136061-pro) and SARS-CoV-2 (COVID-19) Spike (ECD) protein, His tag (active) (GTX135972-pro) (4000-62.5 ng/mL). Coated protein was probed with SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713) (1 μg/mL). Rabbit IgG antibody (HRP) (GTX213110-01) (1:10000) was used to detect bound primary antibody.

GTX635713 ELISA Image

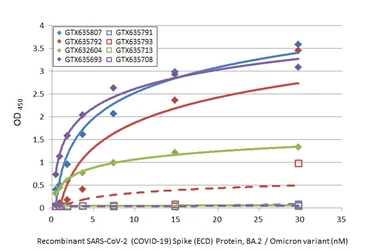

Indirect ELISA analysis was performed by coating the plate with recombinant SARS-CoV-2 (COVID-19) Spike (ECD) Protein, BA.2 / Omicron variant, His tag (GTX137037-pro) (29.71-0.46 nM). Coated protein was probed with the specified SARS-CoV-2 (COVID-19) Spike antibodies (1 μg/mL). Goat anti-rabbit IgG antibody (HRP) (GTX213110-01) (1:10000) or goat anti-mouse IgG antibody (HRP) (GTX213111-01) (1:10000) were used to detect the bound primary antibodies.

GTX635713 ELISA Image

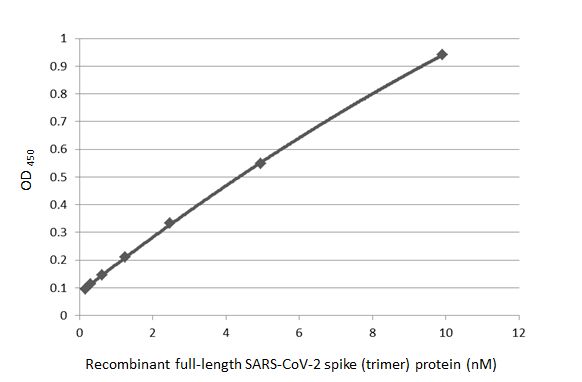

Sandwich ELISA detection of recombinant SARS-CoV-2 spike (trimer) protein using antibodies as below.

Capture: SARS-CoV-2 (COVID-19) Spike RBD antibody [GT5449] (GTX636042) (5 μg/mL)
Detection: SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713) (1 μg/mL)

GTX635713 ICC/IF Image

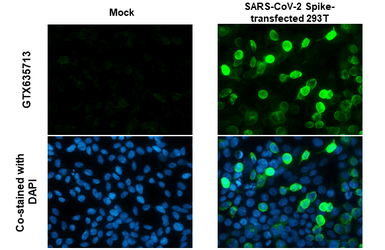

SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] detects SARS-CoV-2 (COVID-19) Spike S1 protein by immunofluorescent analysis.
Sample: Mock and transfected 293T cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: SARS-CoV-2 (COVID-19) Spike S1 stained by SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713) diluted at 1:1000.
Blue: Fluoroshield with DAPI (GTX30920).

GTX635713 WB Image

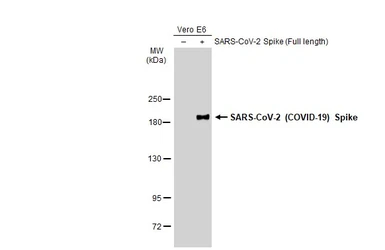

Non-transfected (–) and transfected (+) Vero E6 whole cell extracts (30 μg) were separated by 5% SDS-PAGE, and the membrane was blotted with SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713) diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

GTX635713 ELISA Image

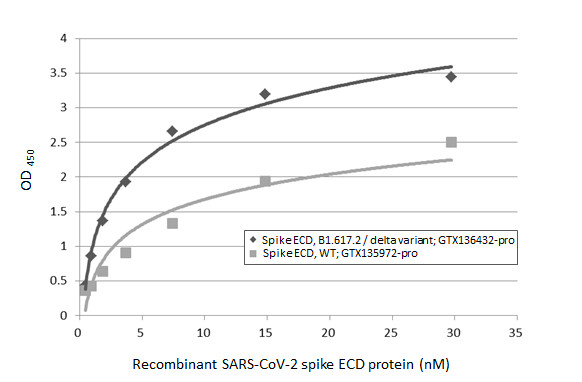

Indirect ELISA analysis performed by coating plate with recombinant Spike ECD protein(s) derived from different strains of SARS-CoV-2 virus (ie., Wild type; B1.617.2 delta variant) (29.71-0.46 nM). Coated protein was probed with SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713) (1 μg/mL). Goat anti-rabbit IgG antibody (HRP) (GTX213110-01) (1:10000) was used to detect bound primary antibody.

GTX635713 WB Image

GTX635713 ELISA Image

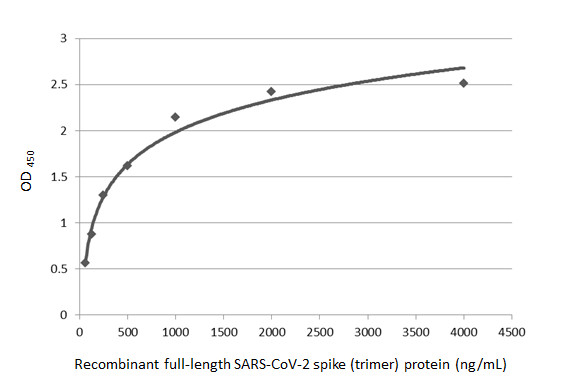

Indirect ELISA analysis performed by coating plate with recombinant full-length SARS-CoV-2 spike (trimer) protein (4000-62.5 ng/mL). Coated protein was probed with SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713) (1 μg/mL). Rabbit IgG antibody (HRP) (GTX213111-01) (1:10000) was used to detect bound primary antibody.

REFERENCE

There are currently no references for SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713). Be the first to share your publications with this product.

Submit a Reference

REVIEW

There are currently no reviews for SARS-CoV-2 (COVID-19) Spike S1 antibody [HL13402] (GTX635713). Be the first to share your experience with this product.

Submit a Review
