Synaptotagmin 1 antibody [N1C2]

Synaptotagmin 1 antibody [N1C2] detects Synaptotagmin 1 protein at cell membrane and cytoplasm by immunohistochemical analysis.
Sample: Paraffin-embedded mouse eye.
Green: Synaptotagmin 1 stained by Synaptotagmin 1 antibody [N1C2] (GTX114124) diluted at 1:250.
Red: beta Tubulin 3/ Tuj1, a cytoskeleton marker, stained by beta Tubulin 3/ Tuj1 antibody [GT11710] (GTX631836) diluted at 1:500.
Blue: Fluoroshield with DAPI (GTX30920).
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

Synaptotagmin 1 antibody [N1C2] detects Synaptotagmin 1 protein by immunofluorescent analysis.
Sample: DIV14 rat E18 primary cortical neurons were fixed in 4% paraformaldehyde at RT for 15 min.
Green: Synaptotagmin 1 protein stained by Synaptotagmin 1 antibody [N1C2] (GTX114124) diluted at 1:500.
Red: beta Tubulin 3/ Tuj1, stained by beta Tubulin 3/ Tuj1 antibody [GT1338] (GTX631831) diluted at 1:500.
Blue: Fluoroshield with DAPI (GTX30920).

Whole cell extract (30 μg) was separated by 10% SDS-PAGE, and the membrane was blotted with Synaptotagmin 1 antibody [N1C2] (GTX114124) diluted at 1:10000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.

Various tissue extracts (10 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with Synaptotagmin 1 antibody [N1C2] (GTX114124) diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

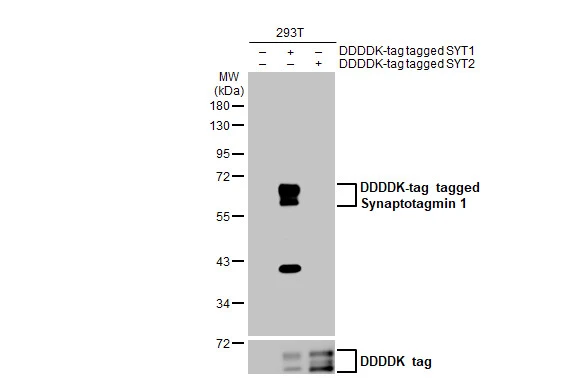

Non-transfected (–) and transfected (+) 293T whole cell extracts were separated by 10% SDS-PAGE, and the membrane was blotted with Synaptotagmin 1 antibody [N1C2] (GTX114124) diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Human tissue extract (30 μg) was separated by 10% SDS-PAGE, and the membrane was blotted with Synaptotagmin 1 antibody [N1C2] (GTX114124) diluted at 1:10000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Various whole cell extracts (30 Âμg) were separated by 10% SDS-PAGE, and the membrane was blotted with Synaptotagmin 1 antibody [N1C2] (GTX114124) diluted at 1:10000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced. Corresponding RNA expression data for the same cell lines are based on Human Protein Atlas program.
