Whole cell extract (30 μg) was separated by 5% SDS-PAGE, and the membrane was blotted with TLR3 antibody (GTX113022) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.

TLR3 antibody detects TLR3 protein at cytoplasm by immunohistochemical analysis.
Sample: Paraffin-embedded rat pancreas.
TLR3 stained by TLR3 antibody (GTX113022) diluted at 1:1000.
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

Immunohistochemical analysis of paraffin-embedded TOV-112D xenograft, using TLR3(GTX113022) antibody at 1:100 dilution.
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

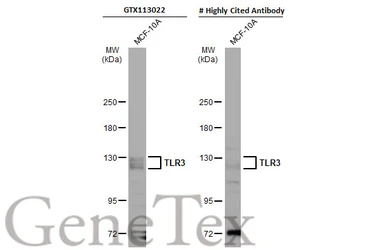

Whole cell extract (30 μg) was separated by 5% SDS-PAGE, and the membranes were blotted with TLR3 antibody (GTX113022) diluted at 1:1000 and competitor's antibody diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

*The competitor is not affiliated with GeneTex and does not endorse this product.

TLR3 antibody detects TLR3 protein at cytoplasm by immunohistochemical analysis.
Sample: Paraffin-embedded mouse thymus gland.
TLR3 stained by TLR3 antibody (GTX113022) diluted at 1:500.
Antigen Retrieval: Citrate buffer, pH 6.0, 15 min

Immunofluorescence analysis of methanol-fixed HeLa, using TLR3(GTX113022) antibody at 1:200 dilution.
