TOMM20 antibody [AT1B2]

Anti-TOMM20 antibody [AT1B2] used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX57716
Anti-TOMM20 antibody [AT1B2] used in Flow cytometry (FACS). GTX57716
Anti-TOMM20 antibody [AT1B2] used in Western Blot (WB). GTX57716

Cat. No. GTX57716

Host

 Mouse

Clonality

 Monoclonal

Clone Name

 AT1B2

Isotype

 IgG1

Application

 WB, ICC/IF, FACS

Reactivity

 Human
Package
100 μl ($399)
See all TOMM20 products

APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.
Application Recommended Dilution
WB Assay dependent
ICC/IF Assay dependent
FACS Assay dependent
Not tested in other applications.

Calculated MW

16 kDa. ( Note )

PROPERTIES

Form

Liquid

Buffer

PBS, 10% Glycerol

Preservative

0.02% Sodium azide

Storage

Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.

Concentration

1 mg/ml (Please refer to the vial label for the specific concentration.)

Antigen Species

Human

Immunogen

The clone AT1B2 is derived from hybridization of mouse F0 myeloma cells with spleen cells from BALB/c mice immunized with a recombinant human Tomm22 protein.

Purification

Protein A Purified

Conjugation

Unconjugated

Note

For laboratory research use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.

Purchasers shall not, and agree not to enable third parties to, analyze, copy, reverse engineer or otherwise attempt to determine the structure or sequence of the product.

TARGET

Synonyms

translocase of outer mitochondrial membrane 20 , MAS20 , MOM19 , TOM20 , TOMM20 , Tom20

Cellular Localization

Mitochondrion outer membrane

Database

Research Area

DATA IMAGES

Anti-TOMM20 antibody [AT1B2] used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX57716

GTX57716 ICC/IF Image

ICC/IF analysis of HeLa cells using GTX57716 TOMM20 antibody.
Blue: DAPI
Green: Primary antibody
Dilution: 1:100

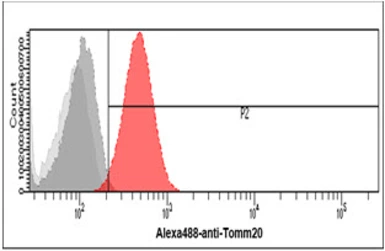

Anti-TOMM20 antibody [AT1B2] used in Flow cytometry (FACS). GTX57716

GTX57716 FACS Image

FACS analysis of HeLa cells using GTX57716 TOMM20 antibody.
Cell Number: 1 x 10⁶ cells
Red: Primary antibody
Antibody amount: 2-5 μg

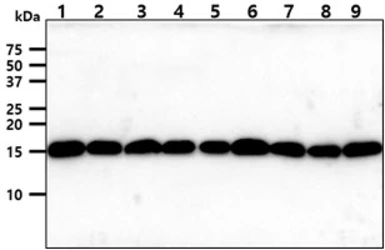

Anti-TOMM20 antibody [AT1B2] used in Western Blot (WB). GTX57716

GTX57716 WB Image

WB analysis of various samples using GTX57716 TOMM20 antibody.
Lane 1 : HeLa whole cell lysate
Lane 2 : HepG2 whole cell lysate
Lane 3 : A431 whole cell lysate
Lane 4 : K562 whole cell lysate
Lane 5 : A549 whole cell lysate
Lane 6 : 293T whole cell lysate
Lane 7 : MCF-7 whole cell lysate
Lane 8 : SK-OV-3 whole cell lysate
Lane 9 : PC-3 whole cell lysate
Loading : 40 μg
Dilution : 1:1000

REFERENCE

There are currently no references for TOMM20 antibody [AT1B2] (GTX57716). Be the first to share your publications with this product.
Submit a Reference

REVIEW

There are currently no reviews for TOMM20 antibody [AT1B2] (GTX57716). Be the first to share your experience with this product.
Submit a Review
SDS
PBS.pdf
Glycerol.pdf
Sodium Azide.pdf
Package List Price ($)
$ 399
