USP11 antibody [N1N2], N-term

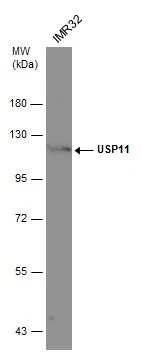

Various whole cell extracts (30 μg) were separated by 7.5% SDS-PAGE, and the membrane was blotted with USP11 antibody [N1N2], N-term (GTX101446) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident femto Western HRP Substrate. Corresponding RNA expression data are based on Human Protein Atlas program.

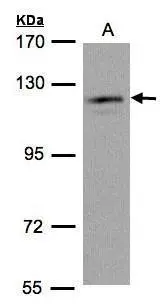

Sample(30 μg of whole cell lysate)
A:HeLa S3(GTX14654)
7.5% SDS PAGE
GTX101446 diluted at 1:1000

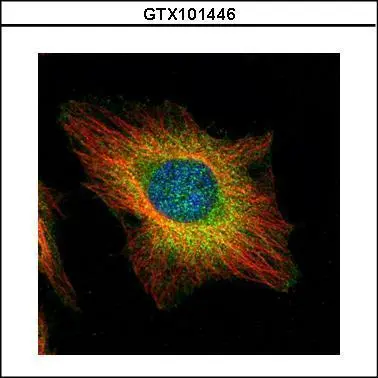

Confocal immunofluorescence analysis (Olympus FV10i) of paraformaldehyde-fixed HeLa, using USP11(GTX101446) antibody (Green) at 1:500 dilution. Alpha-tubulin filaments were labeled with GTX11304 (Red) at 1:2000.
