ZO-1 antibody [N1N2], N-term

KO/KD

Cat No. GTX108613

Host Rabbit
Clonality Polyclonal
Isotype IgG
Application WB, ICC/IF, IHC-P, IP
Reactivity Human, Mouse
APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.
Application Dilution
WB 1:500-1:3000
ICC/IF 1:100-1:1000
IHC-P 1:100-1:1000
IP Assay dependent
Not tested in other applications.

Calculated MW

195 kDa. ( Note )

Positive Control

293T , A431 , HeLa , HepG2 , A549 , H1299 , HCT116 , mouse testis

Predict Reactivity

Rat, Dog(>80% identity)
PROPERTIES

Form

Liquid

Buffer

1XPBS, 1% BSA, 20% Glycerol (pH7). 0.025% ProClin 300 was added as a preservative.

Storage

Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.

Concentration

0.4 mg/ml (Please refer to the vial label for the specific concentration.)

Antigen Species

Human

Immunogen

Recombinant protein encompassing a sequence within the N-terminus region of human ZO-1. The exact sequence is proprietary.

Purification

Purified by antigen-affinity chromatography.

Conjugation

Unconjugated

Note

For laboratory use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.
TARGET

Synonyms

Tight Junction Protein 1,Zo-1,Tjp1

Cellular Localization

Cell membrane; Peripheral membrane protein; Cytoplasmic side , Cell junction , tight junction

Background

This gene encodes a protein located on a cytoplasmic membrane surface of intercellular tight junctions. The encoded protein may be involved in signal transduction at cell-cell junctions. Two transcript variants encoding distinct isoforms have been identified for this gene. [provided by RefSeq]

Database

Research Area

DATA IMAGES

GTX108613 WB Image

KO/KD

Non-transfected (–) and transfected (+) HeLa whole cell extracts (30 µg) were separated by 5% SDS-PAGE, and the membrane was blotted with ZO-1 antibody [N1N2], N-term (GTX108613) diluted at 1:1000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.


GTX108613 IHC-P Image

ZO-1 antibody [N1N2], N-term detects ZO-1 protein at cell membrane and cytoplasm in mouse testis by immunohistochemical analysis.
Sample: Paraffin-embedded mouse testis.
ZO-1 antibody [N1N2], N-term (GTX108613) diluted at 1:500.

Antigen Retrieval: Citrate buffer, pH 6.0, 15 min


GTX108613 WB Image

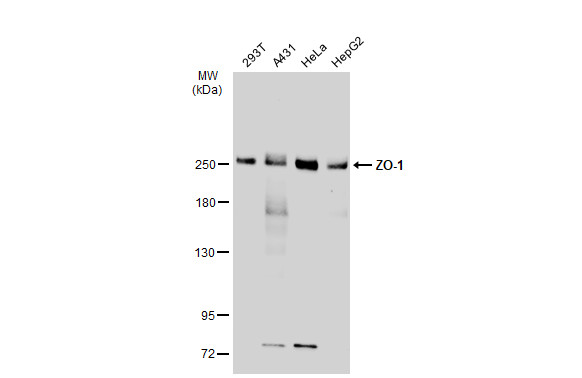

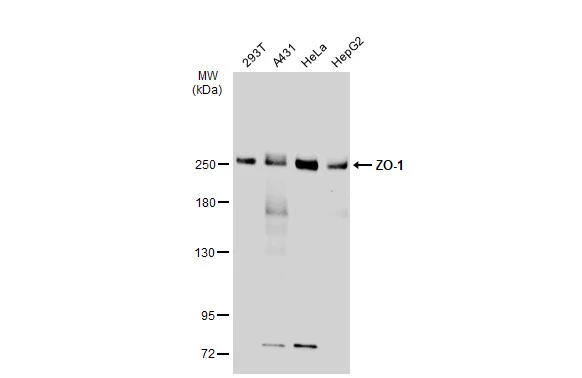

Various whole cell extracts (30 µg) were separated by 5% SDS-PAGE, and the membrane was blotted with ZO-1 antibody [N1N2], N-term (GTX108613) diluted at 1:1000.


GTX108613 WB Image

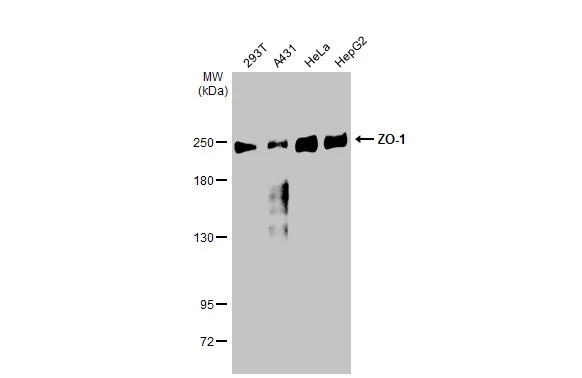

Various whole cell extracts (30 µg) were separated by 5% SDS-PAGE, and the membrane was blotted with ZO-1 antibody [N1N2], N-term (GTX108613) diluted at 1:3000.


GTX108613 IHC-P Image

ZO-1 antibody [N1N2], N-term detects ZO-1 protein at cell membrane and cytoplasm in mouse intestine by immunohistochemical analysis.
Sample: Paraffin-embedded mouse intestine.
ZO-1 antibody [N1N2], N-term (GTX108613) diluted at 1:500.

Antigen Retrieval: Citrate buffer, pH 6.0, 15 min


GTX108613 IHC-P Image

Immunohistochemical analysis of paraffin-embedded H661 xenograft, using ZO-1(GTX108613) antibody at 1:250 dilution.
Antigen Retrieval: Trilogy™ (EDTA based, pH 8.0) buffer, 15min


GTX108613 ICC/IF Image

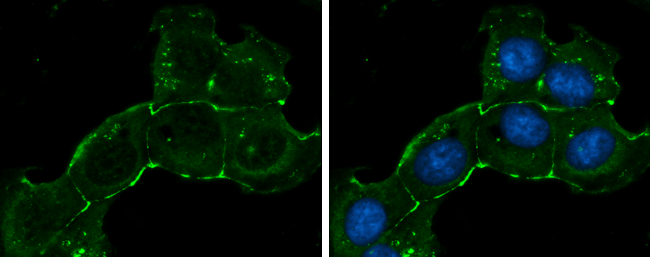

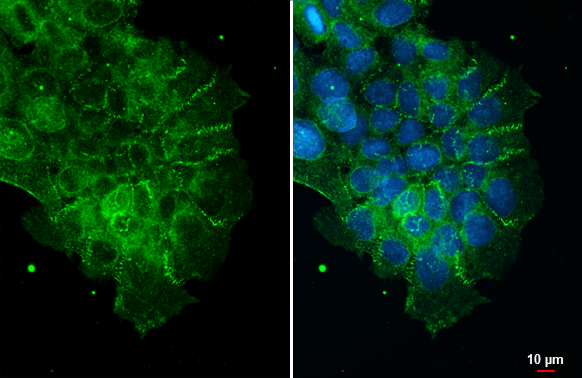

ZO-1 antibody [N1N2], N-term detects ZO-1 protein at cell membrane by immunofluorescent analysis.
Sample: NT2D1 cells were fixed in ice-cold MeOH for 5 min.
Green: ZO-1 stained by ZO-1 antibody [N1N2], N-term (GTX108613) diluted at 1:200.
Blue: Hoechst 33342 staining.


GTX108613 WB Image

Mouse tissue extract (50 µg) was separated by 5% SDS-PAGE, and the membrane was blotted with ZO-1 antibody [N1N2], N-term (GTX108613) diluted at 1:500. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

REFERENCE
REVIEW

ZO-1 antibody [N1N2], N-term Cat No. GTX108613

Rating ( Average 5 based on 1 users reviews)
Application
Immunocytochemistry/ Immunofluorescence(ICC/IF) ( Average 5 based on 1 users reviews)
Date : Anonymous submitted on 31-Aug-2018
Score :
Application Tested : ICC/IF
Sample Species : Hu
Sample : Brain microvascular endothelial cell
Blocking : PBS with 0.1% Triton X-100, 5% goat serum
Primary Antibody : 1:50, 4°C, overnightHr
Application Reference
