ZO-1 antibody [N2C1], Internal

KO/KD

Cat No. GTX108627

Host Rabbit
Clonality Polyclonal
Isotype IgG
Application WB, ICC/IF
Reactivity Human
APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.
Application Dilution
WB 1:500-1:3000
ICC/IF 1:100-1:1000
Not tested in other applications.

Calculated MW

195 kDa. ( Note )

Positive Control

HeLa , HCT116, *HaCaT

Predict Reactivity

Mouse, Rat, Dog(>80% identity)
PROPERTIES

Form

Liquid

Buffer

0.1M Tris, 0.1M Glycine, 20% Glycerol (pH7). 0.01% Thimerosal was added as a preservative.

Concentration

0.53mg/ml

Antigen Species

Human

Immunogen

Recombinant protein encompassing a sequence within the center region of human ZO-1. The exact sequence is proprietary.

Purification

Purified by antigen-affinity chromatography.

Conjugation

Unconjugated

Note

For In vitro laboratory use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.
TARGET

Synonyms

DKFZp686M05161 antibody, MGC133289 antibody, ZO-1 antibody, TJP1 antibody, zona occludens protein 1 antibody, zona occludens 1 antibody, tight junction protein ZO-1 antibody, zonula occludens 1 protein antibody, zonula occludens protein 1 antibody, tight junction protein 1 (zona occludens 1) antibody

Cellular Localization

Cell membrane; Peripheral membrane protein; Cytoplasmic side , Cell junction , tight junction

Background

This gene encodes a protein located on a cytoplasmic membrane surface of intercellular tight junctions. The encoded protein may be involved in signal transduction at cell-cell junctions. Two transcript variants encoding distinct isoforms have been identified for this gene. [provided by RefSeq]
Show More +

Database

Research Area

DATA IMAGES

GTX108627 WB Image

KO/KD

Non-transfected (–) and transfected (+) HeLa whole cell extracts (30 µg) were separated by 5% SDS-PAGE, and the membrane was blotted with ZO-1 antibody [N2C1], Internal (GTX108627) diluted at 1:500. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.


GTX108627 WB Image

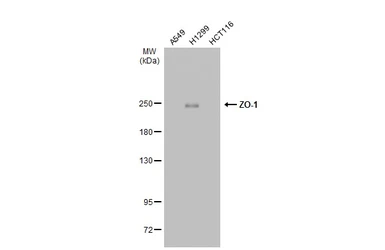

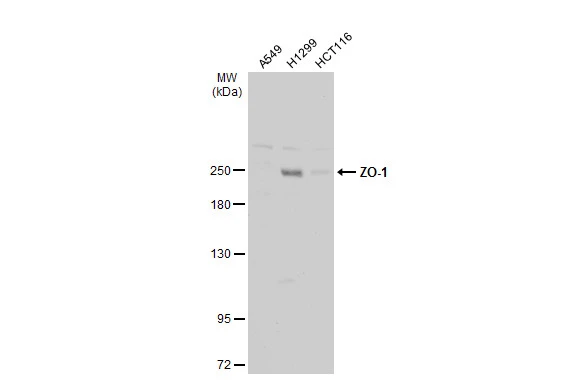

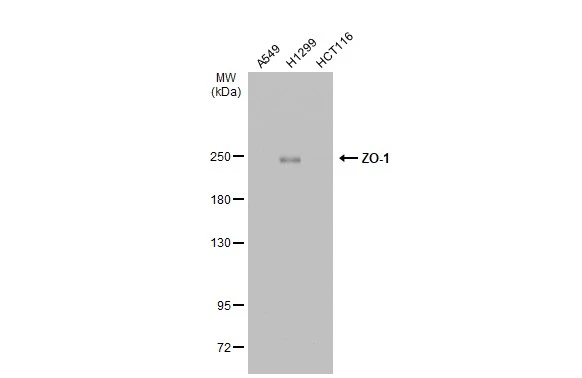

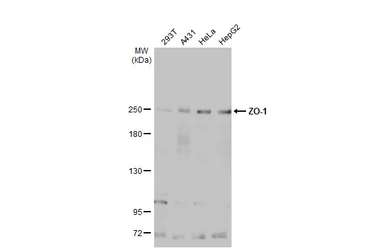

Various whole cell extracts (30 µg) were separated by 5% SDS-PAGE, and the membrane was blotted with ZO-1 antibody [N2C1], Internal (GTX108627) diluted at 1:2000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody, and the signal was developed with Trident ECL plus-Enhanced.


GTX108627 ICC/IF Image

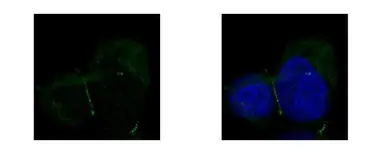

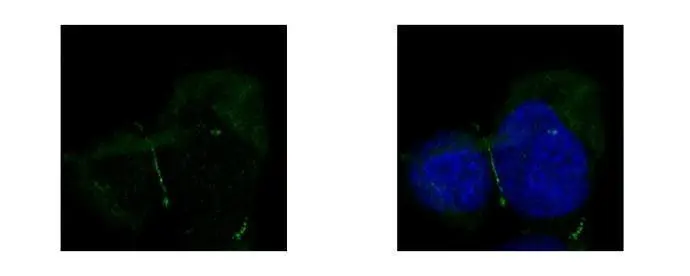

ZO-1 antibody [N2C1], Internal detects TJP1 protein at junction by confocal immunofluorescent analysis.
Sample: A431 cells were fixed in ice-cold MeOH for 5 min.
Green: TJP1 protein stained by ZO-1 antibody [N2C1], Internal (GTX108627) diluted at 1:500.
Blue: Hoechst 33342 staining.
[Images captured by Olympus FV10i Confocal Laser Scanning Microscope]

REVIEW

ZO-1 antibody [N2C1], Internal Cat No. GTX108627

Rating ( Average 4 based on 1 users reviews)
Application
Western Blot(WB) ( Average 4 based on 1 users reviews)
Date : Anonymous submitted on 24-Jun-2015
Score :
Application Tested : WB
Sample Species : Hu

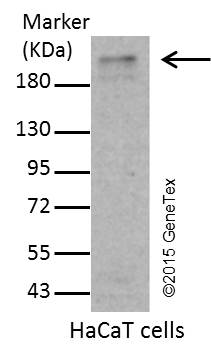

Sample : HaCaT cells
Amount used : 20μg
Blocking : 5% non-fat milk, 25°C, 1Hr
Primary Antibody : 1:2000, 4°C, 16Hr
SDS
Glycerol.pdf
Thimerosal.pdf
Package List Price ($)
$ 319
$ 169
Current in productions
