ZWINT antibody


Cat No. GTX107155

Host Rabbit
Clonality Polyclonal
Isotype IgG
Application WB, ICC/IF
Reactivity Human
APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.
Application Dilution
WB 1:500-1:3000
ICC/IF 1:100-1:1000
Not tested in other applications.

Calculated MW

31 kDa. ( Note )

Positive Control

293T , Molt-4 , Raji
PROPERTIES

Form

Liquid

Buffer

0.1M Tris, 0.1M Glycine, 10% Glycerol (pH7). 0.01% Thimerosal was added as a preservative.

Storage

Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.

Concentration

1 mg/ml (Please refer to the vial label for the specific concentration.)

Antigen Species

Human

Immunogen

Recombinant protein encompassing a sequence within the center region of human ZWINT. The exact sequence is proprietary.

Purification

Purified by antigen-affinity chromatography.

Conjugation

Unconjugated

Note

For laboratory use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.
TARGET

Synonyms

Zw10 Interacting Kinetochore Protein,Hzwint-1,Kntc2Ap,Sip30,Zwint1,Zwint

Cellular Localization

Nucleus , Kinetochore

Background

This gene encodes a protein that is clearly involved in kinetochore function although an exact role is not known. It interacts with ZW10, another kinetochore protein, possibly regulating the association between ZW10 and kinetochores. The encoded protein localizes to prophase kinetochores before ZW10 does and it remains detectable on the kinetochore until late anaphase. It has a uniform distribution in the cytoplasm of interphase cells. Alternatively spliced transcript variants encoding different isoforms have been found for this gene. [provided by RefSeq]

Database

Research Area

DATA IMAGES

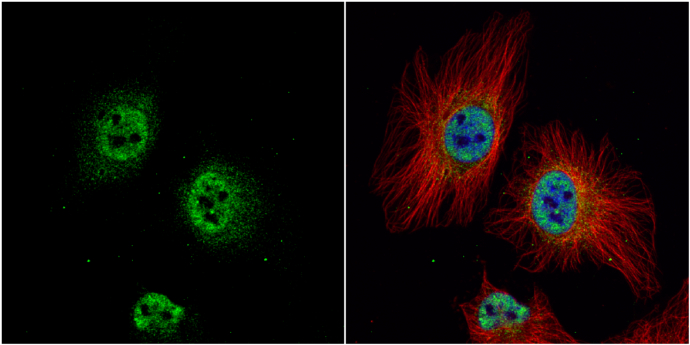

GTX107155 ICC/IF Image

ZWINT antibody detects ZWINT protein at nucleus by immunofluorescent analysis.
Sample: HeLa cells were fixed in 4% paraformaldehyde at RT for 15 min.
Green: ZWINT protein stained by ZWINT antibody (GTX107155) diluted at 1:500.
Red: alpha Tubulin, a cytoskeleton marker, stained by alpha Tubulin antibody [B-5-1-2] (GTX11304) diluted at 1:10000.
Blue: Hoechst 33342 staining.

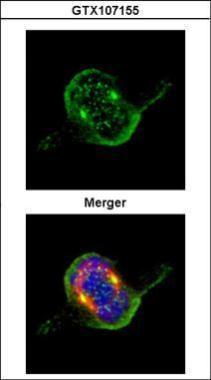

GTX107155 ICC/IF Image

Confocal immunofluorescence analysis (Olympus FV10i) of paraformaldehyde-fixed 293T, using ZWINT(GTX107155) antibody (Green) at 1:500 dilution. Alpha-tubulin filaments were labeled with GTX11304 (Red) at 1:500.

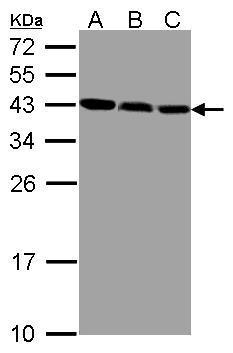

GTX107155 WB Image

Sample(30 ug whole cell lysate)
A:293T
B:MOLT4 (GTX27912)
C:Raji (GTX27908)
12% SDS PAGE
GTX107155 diluted at 1:1000
