Zika virus Envelope protein antibody

Anti-Zika virus Envelope protein antibody used in Western Blot (WB). GTX133314
Anti-Zika virus Envelope protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133314
Anti-Zika virus Envelope protein antibody used in Western Blot (WB). GTX133314
Anti-Zika virus Envelope protein antibody used in Western Blot (WB). GTX133314
Anti-Zika virus Envelope protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133314
Anti-Zika virus Envelope protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133314
Anti-Zika virus Envelope protein antibody used in Western Blot (WB). GTX133314
Anti-Zika virus Envelope protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133314

Cat. No. GTX133314

Host

Rabbit

Clonality

Polyclonal

Isotype

IgG

Application

WB, ICC/IF, IHC-P

Reactivity

Zika virus
Package
100 μl ($399),
25 μl ($169)

APPLICATION

Application Note

*Optimal dilutions/concentrations should be determined by the researcher.
Application Recommended Dilution
WB 1:500-1:3000
ICC/IF 1:100-1:1000
IHC-P Assay dependent
Not tested in other applications.

Calculated MW

54 kDa. ( Note )

Positive Control

Zika virus Envelope-transfected 293T

PROPERTIES

Form

Liquid

Buffer

1XPBS (pH7), 1% BSA, 20% Glycerol

Preservative

0.025% ProClin 300

Storage

Store as concentrated solution. Centrifuge briefly prior to opening vial. For short-term storage (1-2 weeks), store at 4ºC. For long-term storage, aliquot and store at -20ºC or below. Avoid multiple freeze-thaw cycles.

Concentration

0.45 mg/ml (Please refer to the vial label for the specific concentration.)

Antigen Species

Zika virus

Immunogen

Carrier-protein conjugated synthetic peptide encompassing a sequence within the center region of Zika virus Envelope protein (Zika virus (strain H/PF/2013)). The exact sequence is proprietary.

Purification

Purified by antigen-affinity chromatography.

Conjugation

Unconjugated

RRID

AB_2747413

Note

For laboratory use only. Not for any clinical, therapeutic, or diagnostic use in humans or animals. Not for animal or human consumption.

TARGET

Synonyms

Zika virus Envelope , ZIKV Envelope

Research Area

DATA IMAGES

Anti-Zika virus Envelope protein antibody used in Western Blot (WB). GTX133314

GTX133314 WB Image

Mock and infected Vero and BHK-21 whole cell extracts (20 μg) were separated by gradient gel, and the membrane was blotted with Zika virus Envelope protein antibody (GTX133314) diluted at 1:4000.
This image was provided courtesy of cooperative research laboratories.

Anti-Zika virus Envelope protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133314

GTX133314 ICC/IF Image

Immunofluorescent analysis of Zika Virus-PRVABC59 infected (A) and non-infected (B) vero cells using Zika virus Envelope protein antibody (GTX133314).
Green: Zika virus Envelope protein antibody (GTX133314) diluted at 1:4000.
This image was provided courtesy of cooperative research laboratories.

Anti-Zika virus Envelope protein antibody used in Western Blot (WB). GTX133314

GTX133314 WB Image

Non-infected (–) and infected (+) C6/36 whole cell extracts (30 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with Zika virus Envelope protein antibody (GTX133314) diluted at 1:2000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Anti-Zika virus Envelope protein antibody used in Western Blot (WB). GTX133314

GTX133314 WB Image

Non-transfected (–) and transfected (+) 293T whole cell extracts (60 μg) were separated by 10% SDS-PAGE, and the membrane was blotted with Zika virus Envelope protein antibody (GTX133314) diluted at 1:5000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.

Anti-Zika virus Envelope protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133314

GTX133314 ICC/IF Image

Immunofluorescent analysis of arboviruses infected cells using Zika virus Envelope protein antibody (GTX133314).
Samples: EUROIMMUN Arboviral Fever Mosaic 2 slide (FR 2668-1010-1).
Green: Zika virus Envelope protein antibody (GTX133314) diluted at 1:500.
Blue: Hoechst 33342 staining.
Scale bar = 10 μm.

Anti-Zika virus Envelope protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133314

GTX133314 ICC/IF Image

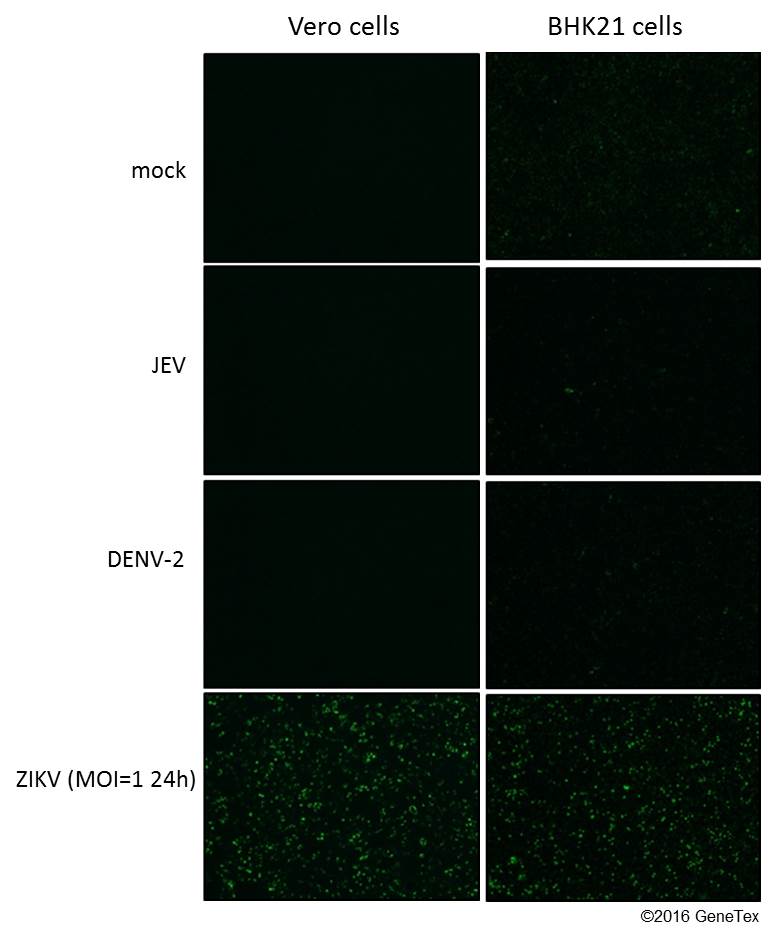

Immunofluorescent analysis of non-infected and infected vero or BHK-21 cells using Zika virus Envelope protein antibody (GTX133314).
Green: Zika virus Envelope protein antibody (GTX133314) diluted at 1:4000.
This image was provided courtesy of cooperative research laboratories.

Anti-Zika virus Envelope protein antibody used in Western Blot (WB). GTX133314

GTX133314 WB Image

Non-infected (–) and infected (+) vero cells (15 μg) were separated by gradient gel, and the membrane was blotted with Zika virus Envelope protein antibody (GTX133314) diluted at 1:2000. The HRP-conjugated anti-rabbit IgG antibody (GTX213110-01) was used to detect the primary antibody.
This image was provided courtesy of cooperative research laboratories.

Anti-Zika virus Envelope protein antibody used in Immunocytochemistry/ Immunofluorescence (ICC/IF). GTX133314

GTX133314 ICC/IF Image

Immunofluorescent analysis of Zika virus infected cells using Zika virus NS5 protein antibody (GTX133314).
Sample: Mock and zika virus-infected cells.
Green: Zika virus Envelope protein antibody (GTX133314) diluted at 1:100.

REFERENCE

REVIEW

Zika virus Envelope protein antibody Cat. No. GTX133314

Rating ( Average 4.9 based on 14 users reviews)
Application
Western Blot(WB) ( Average 4.9 based on 11 users reviews)
Immunocytochemistry/ Immunofluorescence(ICC/IF) ( Average 5 based on 3 users reviews)
Date : Anonymous submitted on 03-Oct-2022
Score :
Application Tested : WB
Figure Note : The data was peer reviewed and published in the 2022 in Viruses. PMID: 35215967
Date : Anonymous submitted on 10-Aug-2021
Score :
Application Tested : WB

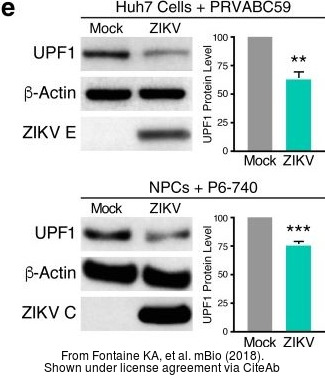

Figure Note : The data was peer reviewed and published in the journal MBio in 2018.PMID: 30401782
Date : Anonymous submitted on 10-Aug-2021
Score :
Application Tested : WB

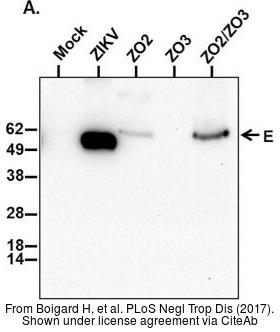

Figure Note : The data was peer reviewed and published in the journal PLoS Negl Trop Dis in 2017.PMID: 28481898
Date : Anonymous submitted on 18-Mar-2021
Score :
Application Tested : WB
Figure Note : The data was peer reviewed and published in the journal mBio in 2017. PMID: 28698279
Date : Anonymous submitted on 18-Mar-2021
Score :
Application Tested : WB
Sample Species : ZIKV

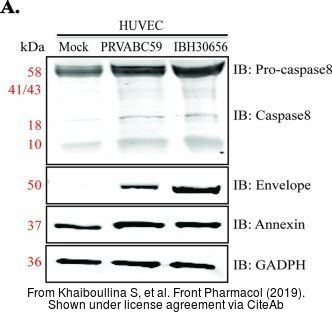

Figure Note : The data was peer reviewed and published in the journal Front Pharmacol in 2019. PMID: 31249527
Date : Anonymous submitted on 18-Mar-2021
Score :
Application Tested : WB
Sample Species : ZIKV

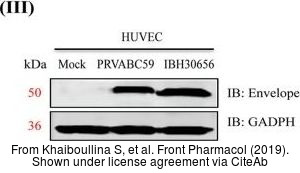

Figure Note : The data was peer reviewed and published in the journal Front Pharmacol in 2019. PMID: 31249527

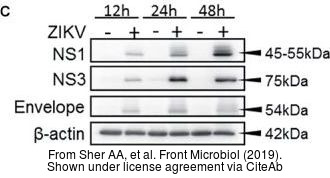

Date : Anonymous submitted on 18-Mar-2021
Score :
Application Tested : WB
Sample Species : ZIKV
Figure Note : The data was peer reviewed and published in the journal Front Microbiol in 2019. PMID: 30984137

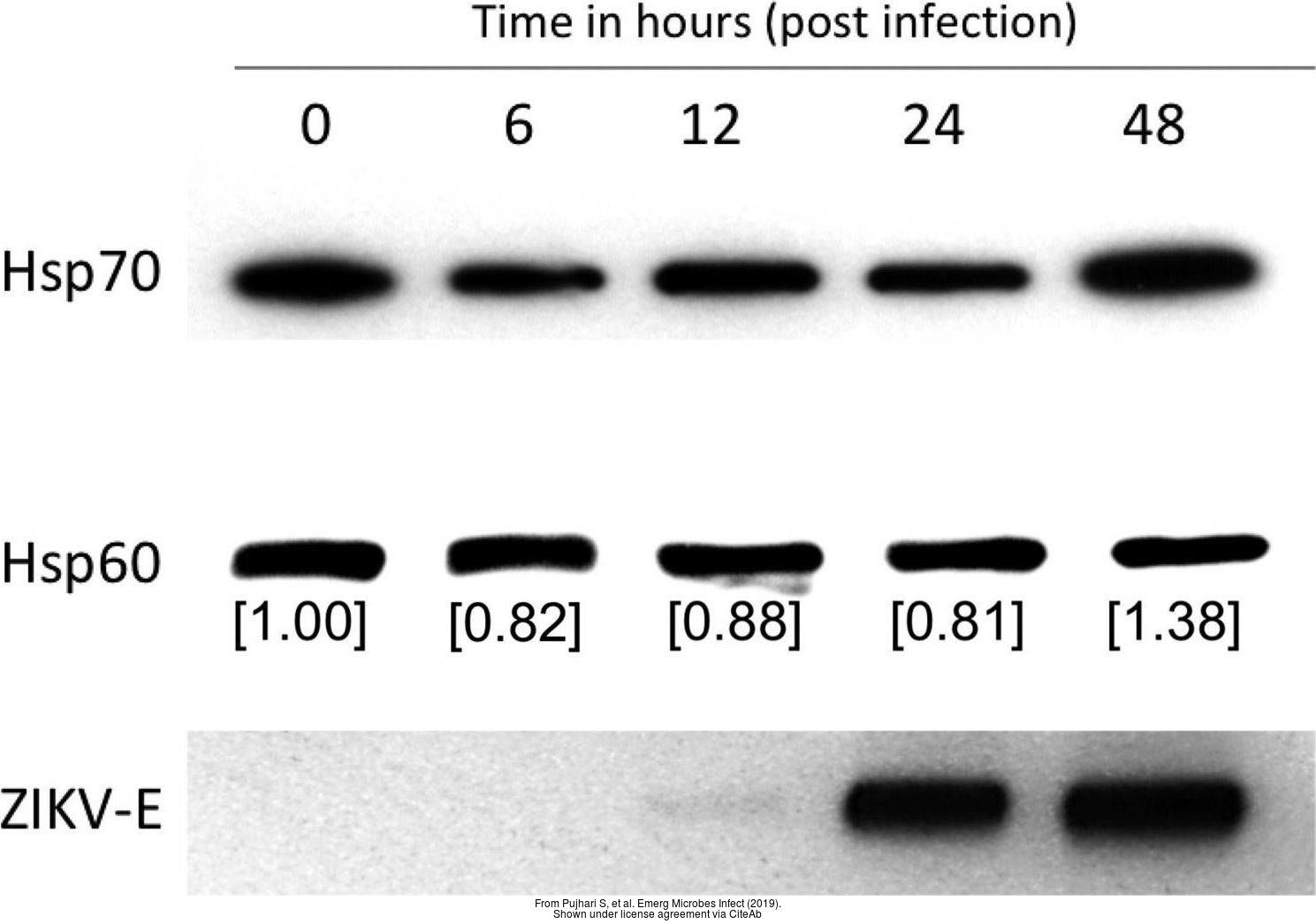

Date : Anonymous submitted on 18-Mar-2021
Score :
Application Tested : WB
Sample Species : ZIKV
Figure Note : The data was peer reviewed and published in the journal Emerg Microbes Infect in 2019. PMID: 30866755
Date : Anonymous submitted on 03-Apr-2018
Score :
Application Tested : ICC/IF
Sample Species : ZIKV

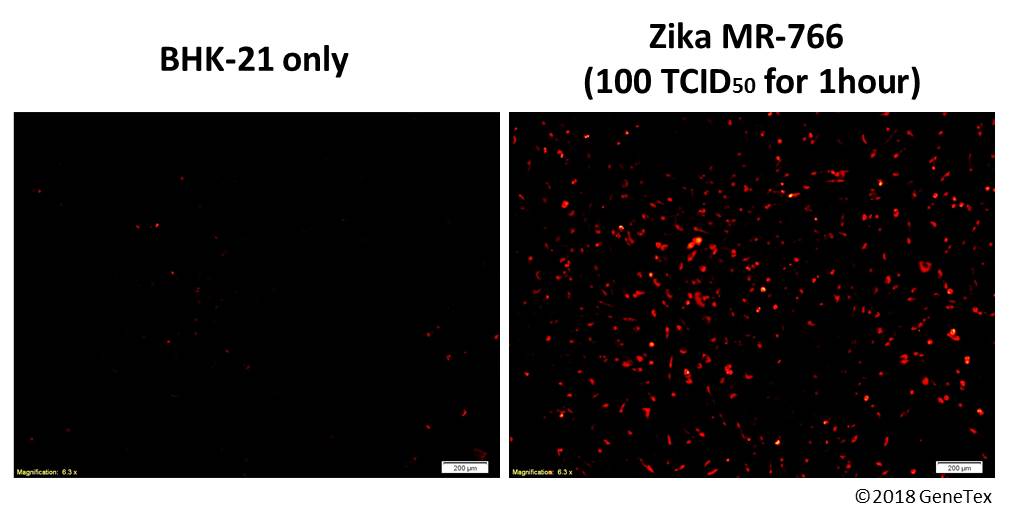

Sample : Zika Virus-MR-766 infected BHK-21 cells
Fixation : 4% paraformaldehyde, 0.5Hr
Permeabilization /Antigen retrieval : 0.1% Triton X-100, 4°C, 2 hrHr
Primary Antibody : 1:3000, 4°C, 16Hr
Date : Anonymous submitted on 14-Jun-2016
Score :
Application Tested : WB
Sample Species : ZIKV
Sample : ZIKV-infected vero cells, ZIKV-infected BHK21 cells
Blocking : 5% non-fat milk
Primary Antibody : 1:4000, 4°C, 16Hr
Date : Anonymous submitted on 13-Jun-2016
Score :
Application Tested : ICC/IF
Sample Species : ZIKV
Sample : ZIKV-infected vero cells, ZIKV-infected BHK21 cells
Blocking : 3% BSA in PBS
Primary Antibody : 1:4000, 4°C, 16Hr
Date : Anonymous submitted on 04-Jun-2016
Score :
Application Tested : ICC/IF
Sample Species : ZIKV
Sample : Zika Virus-PRVABC59 infected vero cells
Fixation : methanol + acetone
Primary Antibody : 1:4000, 4°C, 16Hr
Figure Note : A: Zika Virus-PRVABC59 infected vero cells. (MOI=1 24h), B: vero cell
Date : Anonymous submitted on 04-Jun-2016
Score :
Application Tested : WB
Sample Species : ZIKV

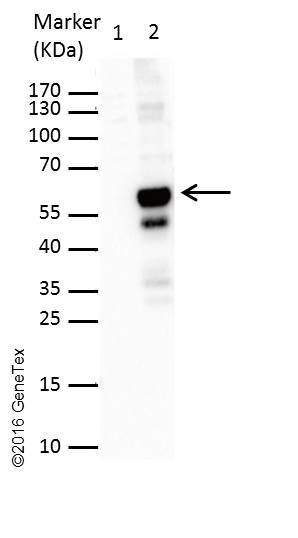

Sample : Zika Virus-PRVABC59 infected C6/36 cells
Amount used : 20μg
Blocking : 5% non-fat milk
Primary Antibody : 1:4000, 4°C, 16Hr
Lane Description : Lane 1: C6/36 cells, Lane 2: Zika Virus-PRVABC59 infected C6/36 cells
Date : Anonymous submitted on 02-Jun-2016
Score :
Application Tested : WB
Sample Species : ZIKV

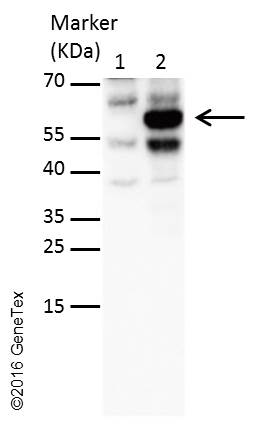

Sample : Zika Virus-PRVABC59 infected vero cells
Amount used : 15μg
Blocking : 5% non-fat milk, 25°C, 0.5Hr
Primary Antibody : 1:2000, 4°C, 16Hr
Lane Description : Lane 1: vero cells, Lane 2: Zika Virus-PRVABC59 infected vero cells. (MOI=0.1 96h)
